Titanium Flange
TSM Technology manufactures and supplies titanium flanges for industrial piping, pressure vessels, heat exchangers, chemical processing, marine, and desalination applications. We offer Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, and Grade 12 titanium flanges in various types, sizes, pressure classes, and international standards. Custom dimensions and specifications are available for OEM and project requirements.
Titanium Flanges Manufacturer & Supplier
Titanium flanges are engineered pipe connection components used to connect pipes, valves, pumps, pressure vessels, heat exchangers, and other industrial equipment. Titanium and titanium alloy flanges combine low density, high strength-to-weight ratio, and excellent resistance to corrosion, making them suitable for piping systems exposed to seawater, chlorides, chemicals, and other aggressive media.
TSM Technology manufactures and supplies titanium flanges for industrial piping and equipment applications. We offer different titanium flange types, grades, dimensions, pressure classes, and standards, with customized manufacturing available according to drawings, specifications, and project requirements.
Titanium Flange Grades
TSM Technology supplies titanium and titanium alloy flanges in different grades to meet various corrosion resistance, strength, and service requirements.
| Titanium Grade | Description |
|---|---|
| Grade 1 | Commercially pure titanium with excellent corrosion resistance and good formability |
| Grade 2 | Commercially pure titanium offering a good balance of strength, corrosion resistance, and weldability |
| Grade 5 | Ti-6Al-4V titanium alloy selected for higher strength requirements |
| Grade 7 | Titanium with palladium addition for enhanced corrosion resistance in certain aggressive environments |
| Grade 9 | Ti-3Al-2.5V titanium alloy offering higher strength than commercially pure titanium |
| Grade 12 | Titanium alloy with enhanced corrosion resistance and higher strength than commercially pure titanium |
Material availability depends on flange type, dimensions, manufacturing requirements, and applicable standards.
Titanium Flange Standards
Titanium flanges can be manufactured according to commonly used international material and dimensional standards. Typical standards include:
| Standard | Description |
|---|---|
| ASTM B381 | Titanium and titanium alloy forgings |
| ASME B16.5 | Pipe flanges and flanged fittings |
| EN 1092-1 | Flanges and their joint dimensions |
| DIN | Applicable DIN flange standards |
| JIS | Applicable JIS flange standards |
| Customer Specification | Custom standards and drawings |
The applicable material, dimensional, pressure, and inspection requirements can be confirmed during quotation.
Titanium Flange Types
TSM Technology supplies titanium flanges in different designs for industrial piping, equipment, and process systems. Available types include Blind, Plate, Paddle, Slip-On, Socket Weld, Threaded, and Weld Neck flanges. Each type is selected according to the piping configuration, operating conditions, applicable standards, and project requirements.

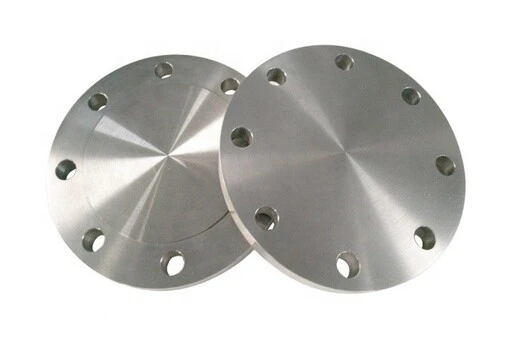

Titanium Blind Flanges (BL)
Titanium Blind Flanges are solid flanges without a center bore, used to close or isolate the end of a pipe, vessel, nozzle, or piping section. They are commonly used for pipeline isolation, pressure testing, maintenance, and equipment connections.

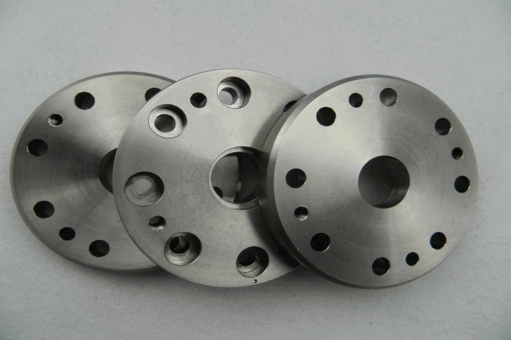

Titanium Plate Flanges (PJ)
Titanium Plate Flanges feature a flat design and are used to connect titanium pipes and equipment in industrial piping systems. They can be supplied with different bore sizes, thicknesses, bolt-hole patterns, and facing configurations.

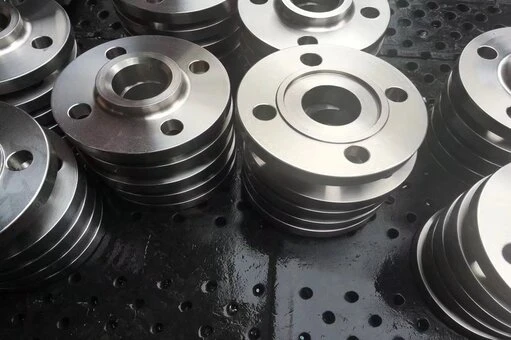

Titanium Slip-On Flanges (SO)
Titanium Slip-On Flanges fit over the outside diameter of a pipe and are welded into position during installation. They provide a practical flange connection for chemical processing, water treatment, marine, and other corrosion-resistant applications.

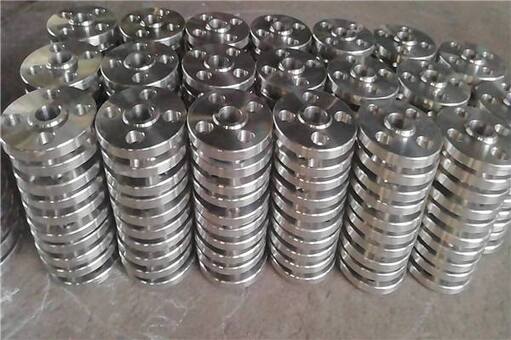

Titanium Socket Weld Flanges (SW)
Titanium Socket Weld Flanges are designed for pipes inserted into the flange socket and welded in place. They are commonly used for smaller-diameter piping and selected pressure applications.

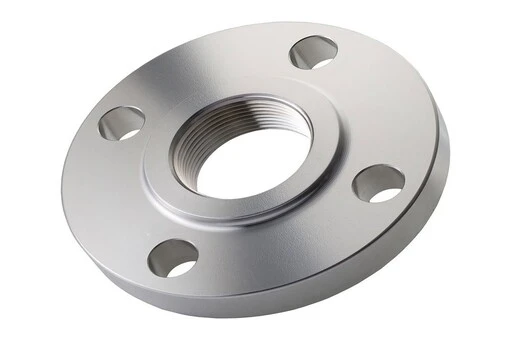

Titanium Threaded Flanges (TH)
Titanium Threaded Flanges feature internal threads for connection to externally threaded pipes without welding. They are used in selected applications where welding is undesirable or impractical.

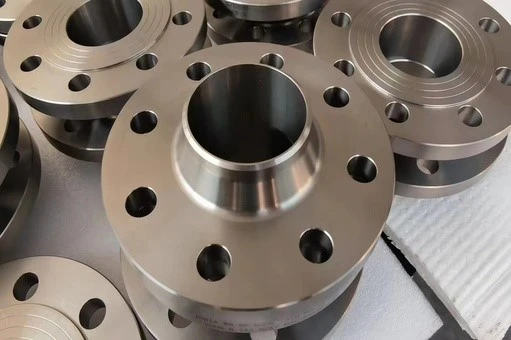

Titanium Weld Neck Flanges (WN)
Titanium Weld Neck Flanges feature a tapered hub that provides a strong transition between the flange and pipe. They are commonly used in high-pressure, high-temperature, cyclic, and other demanding piping applications.
Titanium Flange Sizes and Pressure Classes
TSM Technology supplies titanium flanges in a range of sizes and pressure ratings according to flange type, material grade, and applicable standards.
| Specification | Available Range |
|---|---|
| Nominal Size | NPS 1/2"–48" (DN15–DN1200), including custom sizes |
| ASME Pressure Class | Class 150, 300, 600, 900, 1500, 2500 |
| Facing | RF, FF, RTJ |
| Dimensions | Standard or customized |
| Bolt Holes | Standard or customized |
| Bore | Standard or customized |
Actual size and pressure availability depend on the selected flange type and applicable standard. Custom dimensions, bore sizes, bolt-hole patterns, and other machining requirements can be manufactured according to customer drawings or technical specifications.
Titanium Flange Manufacturing
As a titanium flange manufacturer, TSM Technology manufactures forged and machined titanium flanges for industrial piping and equipment applications. Our manufacturing process covers material preparation, forming, heat treatment, precision machining, inspection, and final packaging according to product and project requirements.
Depending on the product specification, the manufacturing process may include:
Titanium material preparation → Forging → Heat treatment → Machining → Drilling → Flange face machining → Inspection → Marking → Packaging
CNC machining is used to control critical flange dimensions, including thickness, outside diameter, bore diameter, bolt-hole position, and sealing face dimensions. Machining requirements can be controlled according to applicable standards, customer drawings, and technical specifications.
For custom titanium flanges, customers can provide drawings, 2D or 3D files, technical specifications, or reference samples for technical evaluation. TSM Technology can review the requirements and confirm the appropriate material, manufacturing process, inspection requirements, and production details before order placement.
Titanium Flange Quality Control
Material traceability and inspection documentation are available according to customer and project requirements. TSM Technology applies quality control procedures throughout titanium flange production to verify material quality, dimensional accuracy, surface condition, and applicable technical requirements.
Depending on the product and project requirements, inspection and documentation may include:
- Chemical composition verification
- Mechanical property testing
- Dimensional inspection
- Visual and surface inspection
- Positive Material Identification (PMI)
- Ultrasonic or other applicable NDT
- Material Test Certificate (MTC)
- EN 10204 3.1 documentation
Inspection requirements can be confirmed during the quotation stage. This allows the required testing, inspection procedures, and quality documentation to be defined before production and supplied with the order.
Applications of Titanium Flanges
Titanium flanges are selected for piping and equipment applications where corrosion resistance, low weight, and long service life are important.
Typical applications include:
Chemical Processing
Titanium flanges are used in piping systems and equipment exposed to corrosive chemicals and process fluids.
Seawater and Desalination
Their excellent resistance to seawater and chloride-containing environments makes titanium flanges suitable for desalination plants, seawater piping, and water treatment equipment.
Marine and Offshore
Titanium flange connections can be used in marine piping, seawater cooling systems, offshore equipment, and other applications where corrosion resistance is critical.
Heat Exchangers
Titanium flanges are used to connect titanium piping and equipment in heat exchanger systems, particularly where aggressive fluids or seawater are present.
Petrochemical Equipment
Titanium flanges can be used in selected petrochemical piping and equipment applications where conventional materials may not provide sufficient corrosion resistance.
Pressure Vessels
Weld neck, blind, and other titanium flange configurations can be used for connecting piping and nozzles on pressure vessels according to the applicable design requirements.
Why Choose TSM Technology for Titanium Flanges?
TSM Technology provides titanium flanges for distributors, equipment manufacturers, engineering companies, and industrial end users.
Multiple Titanium Grades
Grade 1, 2, 5, 7, 9 and 12 titanium grades are available for different service requirements.
01
Custom Flange Manufacturing
Custom bore diameters, bolt-hole patterns, flange thicknesses, facing configurations, and dimensions can be produced according to drawings.
02
International Standards
Products can be supplied according to applicable ASTM, ASME, EN, DIN, JIS, or customer-specified requirements.
03
Inspection & Traceability
Material certificates, dimensional inspection, PMI, NDT, and EN 10204 3.1 documentation can be provided according to order requirements.
04
OEM & Project Support
We support distributors, engineering companies, equipment manufacturers, and industrial end users with standard and custom titanium flange requirements.
05
Titanium Flange FAQ
Q: What Is A Titanium Flange Used For?
A: A titanium flange is used to create a detachable connection between pipes, valves, pumps, pressure vessels, heat exchangers, and other equipment. Titanium is particularly useful where corrosion resistance and low weight are important.
Q: What Is The Most Common Titanium Flange Grade?
A: Grade 2 titanium is one of the most commonly used commercially pure titanium grades for industrial applications because it provides a good combination of corrosion resistance, strength, weldability, and availability.
Q: What Standard Is Used For Titanium Flanges?
A: ASTM B381 is commonly used for titanium and titanium alloy forgings, while dimensional and pressure requirements may be specified according to ASME B16.5, EN 1092-1, JIS, DIN, or other applicable standards.
Q: Can Titanium Flanges Be Customized?
A: Yes. TSM Technology can manufacture customized titanium flanges according to customer drawings, dimensions, material grades, standards, pressure classes, bolt-hole patterns, facing requirements, and other technical specifications.
Q: Do You Provide Titanium Flange Material Certificates?
A: Material Test Certificates and inspection documentation can be supplied according to customer and project requirements. EN 10204 3.1 documentation is available for applicable orders.
Q: What Information Should I Provide For A Titanium Flange Quotation?
A: Please provide the flange type, titanium grade, standard, nominal size, pressure class, facing type, quantity, and technical drawing or specification if available.
Request a Titanium Flange Quote
Looking for a titanium flange manufacturer for your piping or equipment project?
TSM Technology supplies standard and custom titanium flanges in different grades, types, sizes, pressure classes, and standards. Send us your flange type, titanium grade, standard, size, pressure class, quantity, and technical drawing if available. Our team will review your requirements and provide product specifications, manufacturing options, lead time, and quotation.
