TSM Technology is a world-renowned professional titanium Grade 5 Ti 6al-4v Sheet & Plate manufacturer, providing high-quality Grade 5 6al-4v Titanium Sheets to customers all over the world. As a stockist, always keep ASTM B265 titanium Grade 5 Ti 6al-4v Sheet & Plate in stock with the standard dimensions. 6al4v alloy is very widely used, and our production capacity is 150 tons/month.Ready for shipment in 3-5 days for in-stock items.

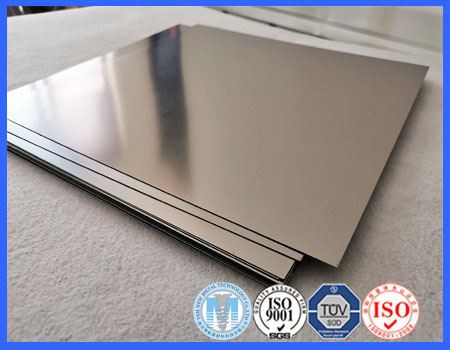

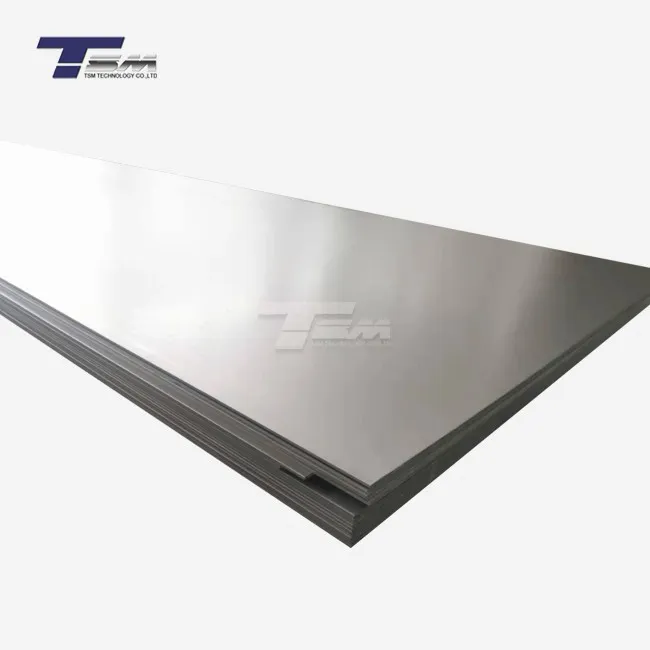

Titanium Grade 5 Ti 6al-4v Sheet. Due to its ability to withstand extreme temperatures, good corrosion resistance and thermal stability, Grade 5 6al-4v is the most commonly used titanium grade of all titanium alloy sheets. Titanium Grade 5 Ti 6al-4v Sheet is widely used in aerospace, electroplating, medical, sports, vacuum coating and other fields.
Specification
| Category | Details |
|---|---|
| Supply Grades | Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 |
| Standards | ASTM B265, ASTM F67, ASTM F136, AMS 4911 |
| Tolerance Control | • According to ASTM specification requirements • Aligned with general industry standards • Customizable per customer's specific requirements |
Dimension of titanium Grade 5 Ti 6al-4v Sheet & Plate
|
Product |
Thickness(mm) |
Width(mm) |
Length(mm) |
| Titanium Foil | 0.01-0.02 | 100max | 500 max |
| 0.03-0.5 | 500max | 1000 max | |
|
Titanium Sheet
|
0.5-0.8 |
800 max |
2000 max |
|
0.8-4 |
1000 max |
3000 max |
|
|
Titanium Plate
|
4-8 |
2000 max |
4000 max |
|
8-100 |
2500 max |
6000 max |
📌Tips
Custom cutting, surface treatment, and CNC processing are fully supported.
Titanium Grade 5 Ti 6al-4v Material Composition & Properties
| Component | Content (%) | Mechanical Properties | Values |
|---|---|---|---|
| Aluminum (Al) | 5.5-6.75 | Tensile Strength | ≥895 MPa |
| Vanadium (V) | 3.5-4.5 | Yield Strength | ≥828 MPa |
| Iron (Fe) | ≤0.30 | Elongation | ≥10% |
| Oxygen (O) | ≤0.20 | Reduction of Area | ≥20% |
| Carbon (C) | ≤0.08 | Hardness (HB) | 334-365 |
| Nitrogen (N) | ≤0.05 | Fatigue Strength | 620 MPa |
| Hydrogen (H) | ≤0.015 | Fracture Toughness | 75 MPa√m |

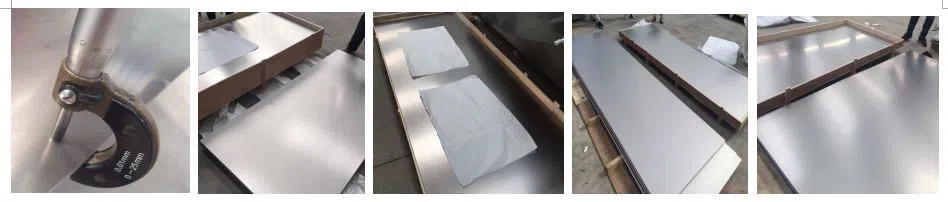

Titanium grade 5 Ti-6al-4v sheet is widely used in aerospace, electroplating, medical, sports, vacuum coating and other fields.

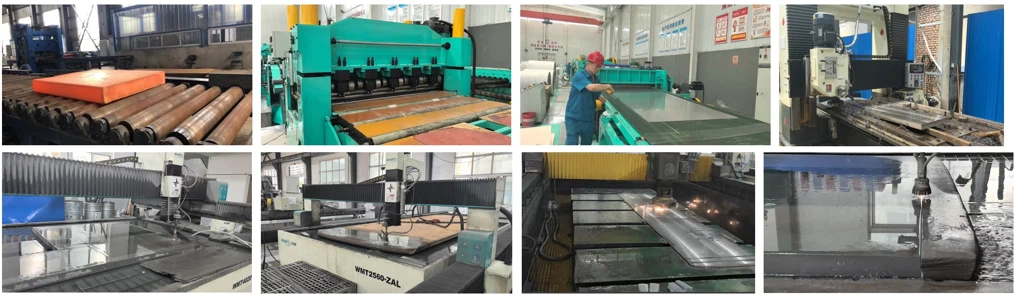

Quality Assurance and Testing
Testing Methods for Titanium Plates
| Test Category | Testing Methods | Purpose / Notes |
|---|---|---|
| Chemical Composition | OES, XRF, ICP | Verifies alloy chemistry and element content meet ASTM requirements. |
| Mechanical Tests | Tensile, Yield Strength, Elongation, Hardness, Bend Test (for thin sheets) | Ensures mechanical performance, ductility, and forming capability. |
| NDT (Non-Destructive Testing) | UT (Ultrasonic Testing), PT (Penetrant Testing) | UT detects internal defects; PT identifies surface cracks and discontinuities. |
| Dimensional Inspection | Thickness (ultrasonic gauge/micrometer), Width, Length, Flatness | Confirms plate dimensional accuracy and uniformity. |
| Surface Inspection | Visual Inspection per ASTM | Identifies scratches, dents, pits, oxidation, and general surface quality. |
| Surface Roughness Testing | Roughness meter/profilometer |
Evaluates surface finish level for precision applications. |
Certification & Documentation
All Ti-6Al-4V sheets and plates are supplied with complete documentation:
Mill Test Certificates 3.1/3.2 per EN 10204
Material traceability throughout production
Third-party inspection reports (SGS and BV )
Compliance certificates for industry-specific standards

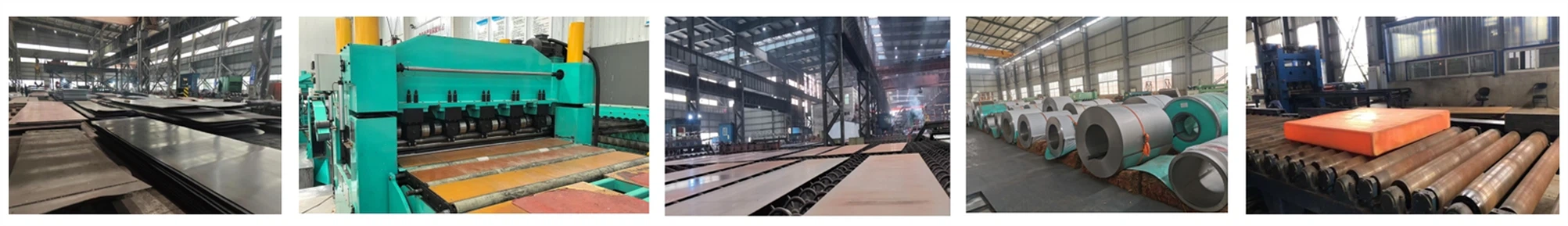

Manufacturing Capabilities
Production Infrastructure
TSM Technology operates state-of-the-art manufacturing facilities specifically designed for titanium processing
Primary Processing Equipment
Vacuum Arc Remelting (VAR) furnaces
4000-ton forging presses for slab formation
Hot rolling mills with computerized control
Cold rolling mills for precision thickness control
Continuous heat treatment furnaces with atmosphere control
Secondary Processing Capabilities
CNC cutting and profiling services
Surface grinding and polishing equipment
Shot blasting and pickling facilities
Precision shearing and slitting operations
production capacity & lead times
We offer a comprehensive range of titanium sheet products with a monthly production capacity of approximately 150 tons. Standard-sized sheets are in stock and can be delivered within 3-5 days; customized sizes and OEM services have delivery times ranging from 7-25 days, depending on the specific quantity and process requirements. Please contact our sales team for accurate delivery dates and quotations.
Why choose us
Quality Assurance
EN10204 3.1/3.2 certification and third-party inspection
custom made
We provide fully custom-made titanium sheets in a wide range of sizes.
Fast Delivery
Ready for shipment within 5-7 days
Competitive Pricing
Best industry rates for bulk orders.
TSM Technology is a leading manufacturer of high-performance Titanium Grade 5 Ti 6al-4v Plate in China. The annual production of various titanium plates is more than 1,200 tons and titanium ingots are more than 2,000 tons. Strict quality control system and high-quality service have won us unanimous praise from overseas customers.
Our Grade 5 titanium sheets and plates undergo rigorous quality control to ensure consistent mechanical properties and dimensional accuracy. With our specialized manufacturing capabilities and strategic inventory management, we provide both standard and customized solutions to meet diverse application requirements.
Frequently Asked Questions
Q1:Are you a trading company or a professional manufacturer?
+
-
A: TSM is a professional manufacturer specializing in titanium Grade 5 6al-4v Sheet. It will be our great honor if you are willing to visit our factory.
Q2: How long is your delivery time for 6al4v titanium sheet?
+
-
A: If we stock what you need, then we will send it out to you anytime. Generally, it will take 15 days for a new production.
Q3: How do I place the order?
+
-
A: When you are satisfied with our quotation, we will offer the Proforma Invoice for your confirmation. Trade assurance is also acceptable. After we receive your prepayment, we will start to manufacture.
Q4: How can you guarantee the product quality?
+
-
A: During the manufacturing process, we are strictly in accordance with ISO9001:2008 and also based on the material standard ASTM B265. And the third party can also be provided if you need

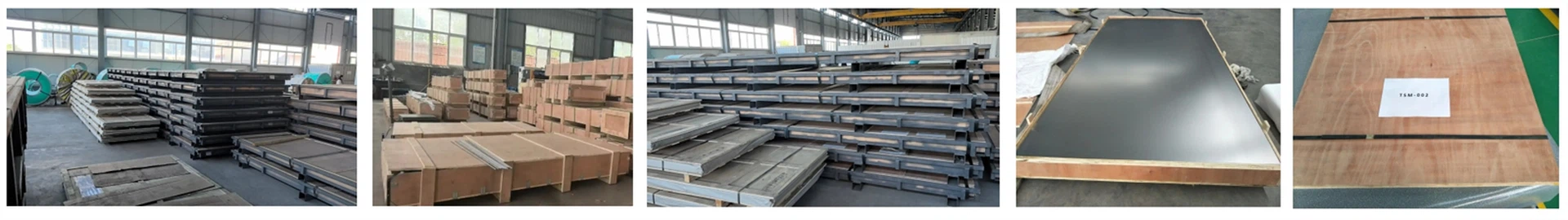

Package
