Titanium Slip On Flange

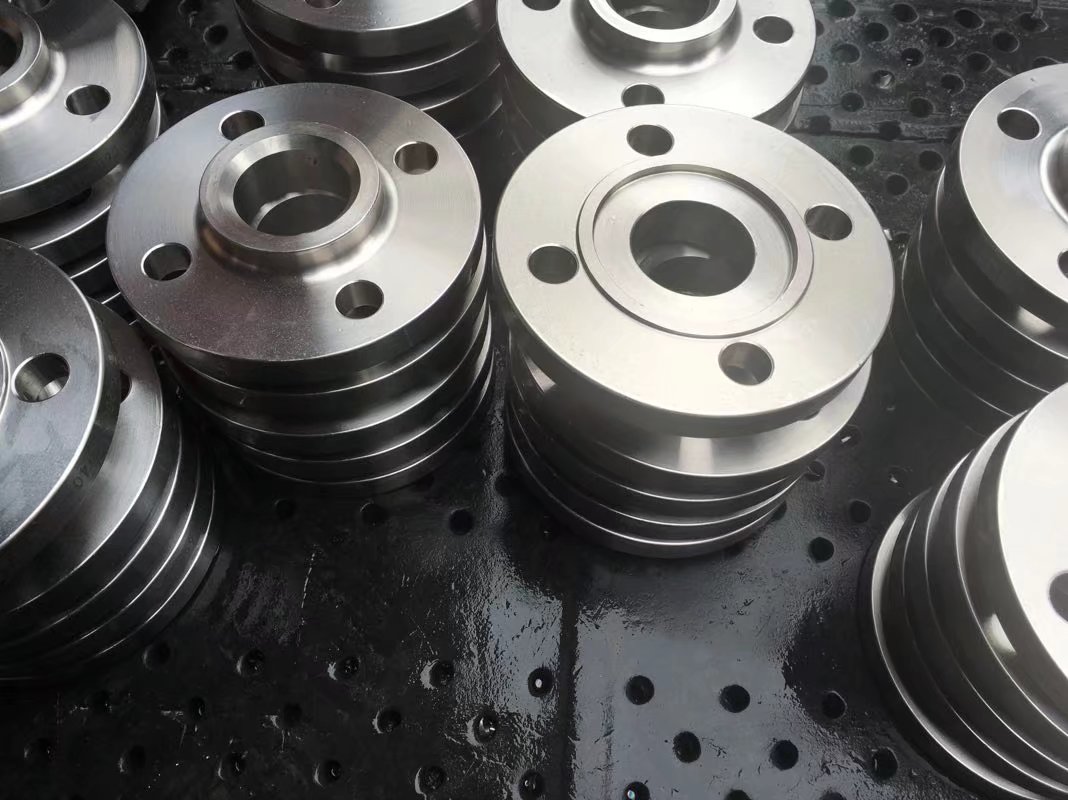

Titanium Slip On flange is sheathed on the pipe end by the flange and Titanium stub ends

Why Choose TSM Titanium Slip On Flanges:

Large stock of common used sizes

Different Standard are supported

Offer Different Titanium Materials

Costomerized design are available

Professional Experice in Titanium Pipe Fitting

What kinds Materials and standard TSM can offer

Item name	Forging titanium slip-on flange NPS 1/2"-48"
Standard	ASTM B381,ASME/ANSI B16.5, EN 1092-1, JIS 2201, AWWA C207,etc
Material	Titanium Gr1,Gr2, Gr3,Gr4,Gr5,Gr7,Gr9,Gr12
Size	NPS 1/2"-48"
Thickness	Sch 5s to Sch 80
Pressure rating	0.6~32Mp
(DIN) PN 1.0-4.0 Mpa
(ASNI) CL150,CL300,CL600,CL900,CL1500
Working temperature	-60°C~250°C
Type	Plate, threaded, slip-on, socket welding, lap joint, blind, welding neck
Flange face	RF, FF, FMF, RJ,Groove etc
Surface treatment	Rust-proof oil, Black, Galvanized
Tests	UT, DPI, PMI, Tensile

Product Details

Titanium Slip On Flange

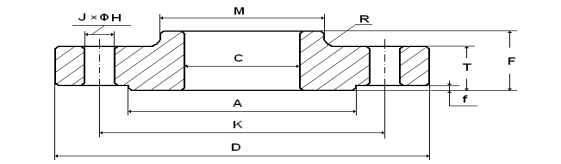

PN	DN	D	K	H	J	C	T	F	M	R	A
En1092-1-12 PN40 Titanium Nickel Slip-On Flange	10	90	60	14	4	18	16	22	30	40	2
15	95	65	14	4	22	16	22	35	45	2
20	105	75	14	4	27.5	18	26	45	58	2
25	115	85	14	4	34.5	18	28	52	68	2
32	140	100	18	4	43.5	18	30	60	78	2
40	150	110	18	4	49.5	18	32	70	88	3
50	165	125	18	4	61.5	20	34	84	102	3
65	185	145	18	4	77.5	22	38	104	122	3
80	200	160	18	8	90.5	24	40	118	138	3
100	235	190	22	8	116	24	44	145	162	3
125	270	220	26	8	142	26	48	170	188	3
150	300	250	26	8	171	28	52	200	218	3
200	375	320	30	12	222	34	52	260	285	3
250	450	385	33	12	277	38	60	312	345	3
300	515	450	33	12	328	42	67	380	410	3
350	580	510	36	16	360	46	72	424	465	4
400	660	585	39	16	411	50	78	478	535	4
450	685	610	39	20	462	57	84	522	560	4
500	755	675	42	20	514	57	90	576	615	4
600	890	795	48	20	617	72	100	686	735	5
