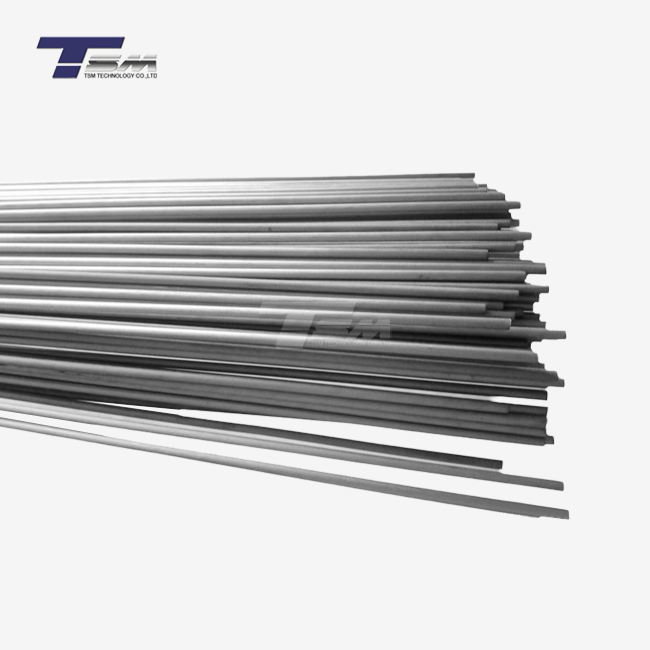

What Is Ti-6Al-7Nb Wire?
Ti-6Al-7Nb wire is a wrought titanium alloy product (UNS R56700, ASTM F1295) supplied in small diameters for applications where bar stock is not practical - such as surgical implant components, orthopedic fixation parts, and precision medical devices requiring tight dimensional control.
Compared with Ti-6Al-7Nb bar, wire is the preferred form for applications involving coiling, automated feeding, spring/fastener components, or fine-diameter implant parts that cannot be machined economically from bar stock. TSM Technology can discuss diameter, supply form, surface condition, certification, and other technical requirements based on individual project specifications.
Ti-6Al-7Nb Wire Forms

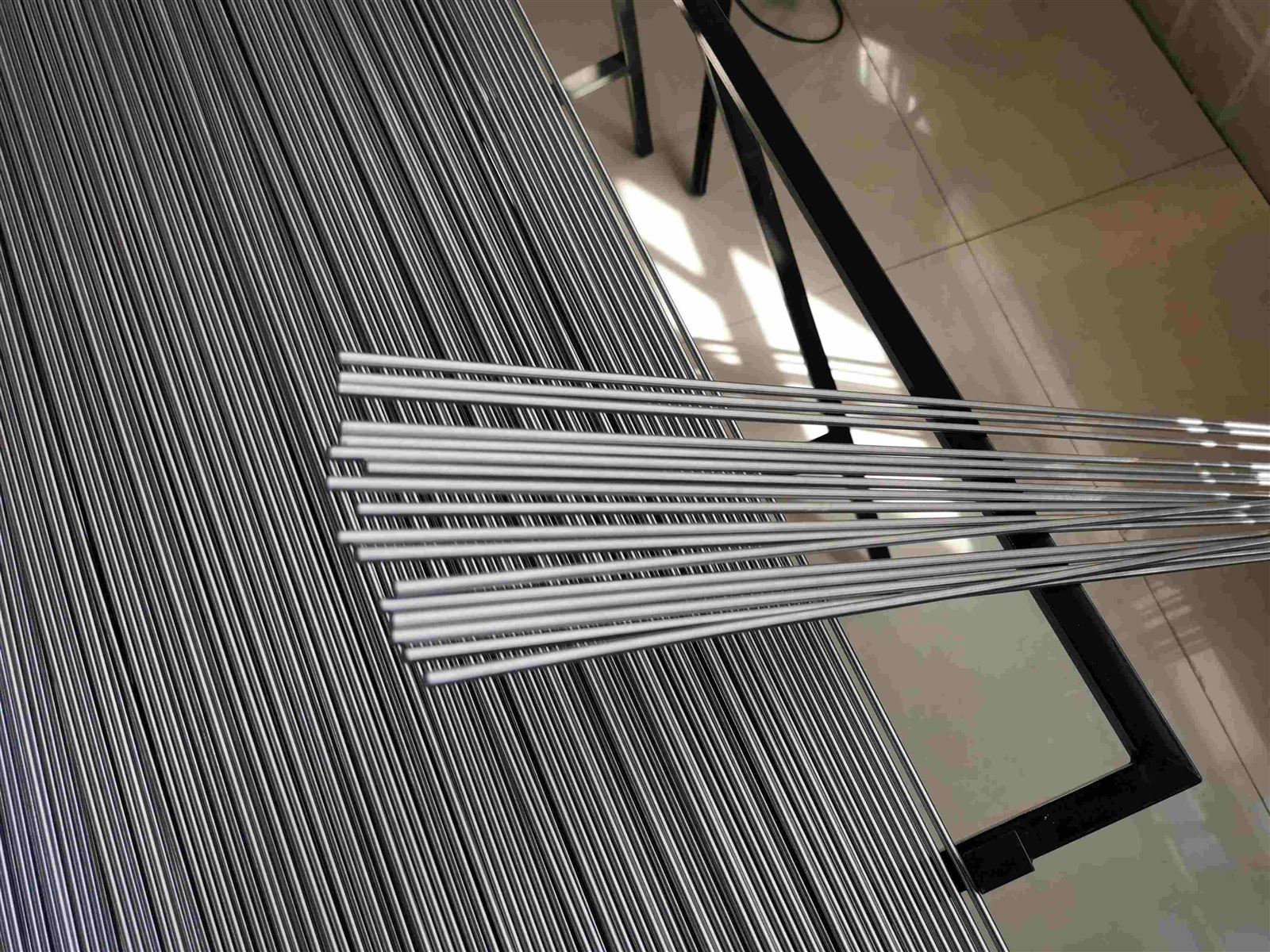

Straight Wire
Cut or straightened wire for component manufacturing

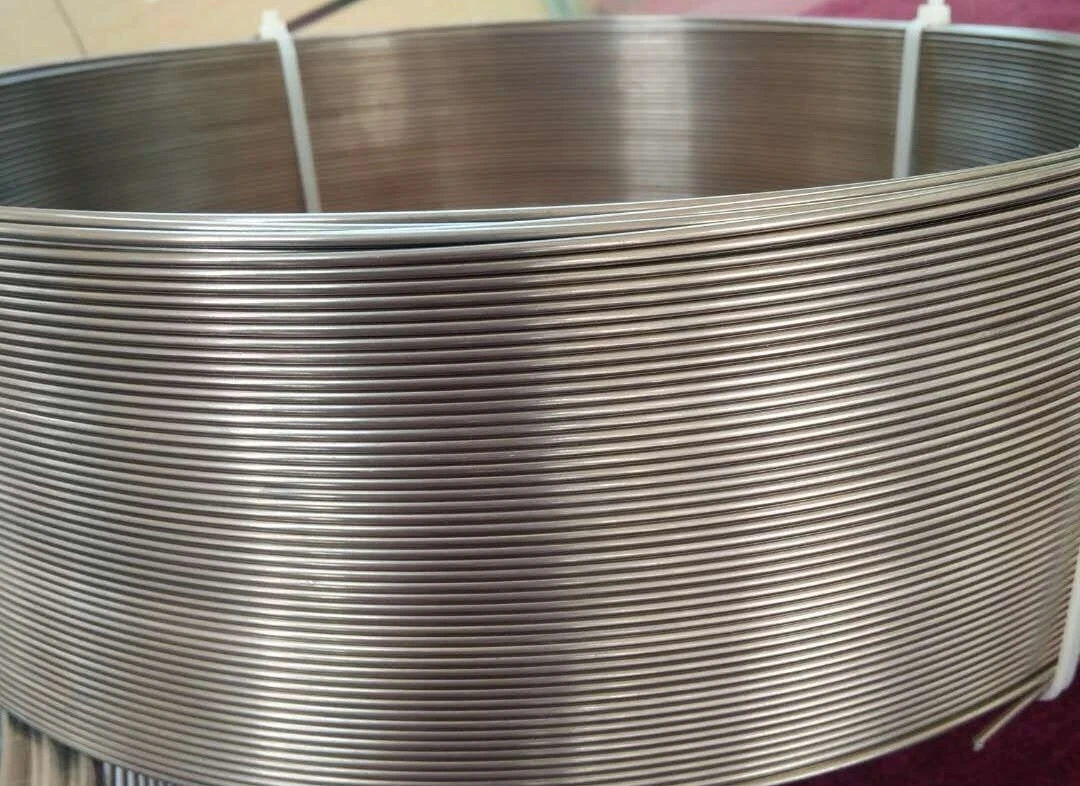

Coil Wire
Continuous lengths for downstream manufacturing

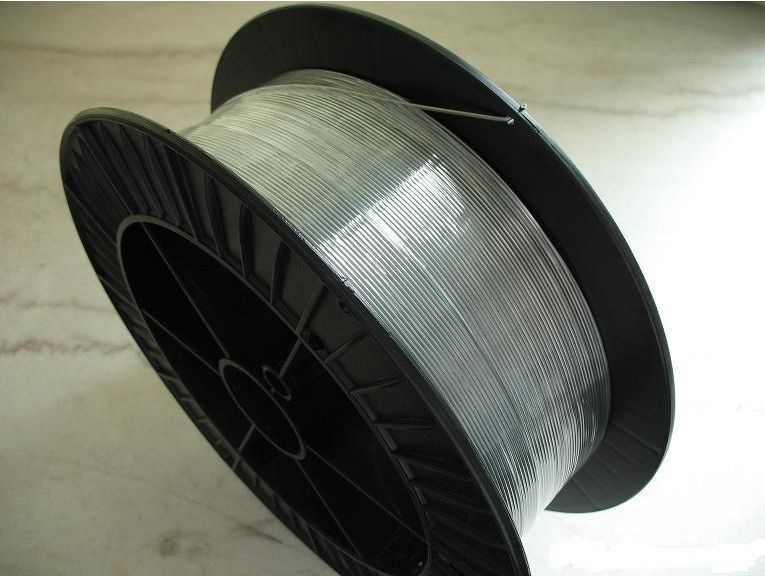

Spool Wire
Continuous wire supply and automated processing
Need a specific diameter, length or supply form? Send us your drawing or specification for confirmation.
specifications
| Item | Specification |
|---|---|
| Grade | Ti-6Al-7Nb |
| UNS | R56700 |
| Standard | ASTM F1295 |
| Diameter | 0.1–6.0 mm typical request range |
| Typical Forms | Spool, Coil, Straight Wire, Cut Length |
| Technology | Hot Working / Cold Working |
| Supply Condition | Cold Worked / Hot Rolled |
| Surface | Bright / Pickled |
| Material Certificate | MTC acc. EN 10204 3.1 |
| Quality Management | ISO 9001:2015 |
Chemical Composition of Ti-6Al-7Nb (wt.%)
| Element | wt.% |
|---|---|
| Aluminum (Al) | 5.5–6.5 |
| Niobium (Nb) | 6.5–7.5 |
| Tantalum (Ta) | 0.50 max. |
| Iron (Fe) | 0.25 max. |
| Oxygen (O) | 0.20 max. |
| Carbon (C) | 0.08 max. |
| Nitrogen (N) | 0.05 max. |
| Hydrogen (H) | 0.009 max. |
| Titanium (Ti) | Balance |
Physical Properties of Ti-6Al-7Nb
| Property | Typical Value |
|---|---|
| Density | ~4.52 g/cm³ |
| Elastic Modulus | ~105–115 GPa |
| Melting Range | ~1640–1660°C |
| Thermal Conductivity | ~6–7 W/m·K |
| Coefficient of Thermal Expansion | ~9 × 10⁻⁶ /K |
Physical property values are typical reference values and may vary with material condition and test method.
Mechanical Properties of Ti-6Al-7Nb
| Condition | Tensile Strength, min. | Yield Strength, min. | Elongation, min. | Reduction of Area, min. |
|---|---|---|---|---|
| Annealed | 900 MPa | 800 MPa | 10% | 25% |
| Hot Worked | 900 MPa | 800 MPa | 10% | 25% |
| Cold Worked | 1100 MPa | 800 MPa | 10% | 25% |
Minimum mechanical requirements are based on the applicable ASTM F1295 requirements. Actual values depend on product size, material condition, processing route and test method. For fine wire sizes, testing requirements should be confirmed with the applicable specification.
Surface Options for Ti-6Al-7Nb Wire
TSM Technology currently lists the following surface options for this wire product:
| Surface | Description |
|---|---|
| Bright | Clean finished surface for applications requiring a bright wire appearance |
| Pickled | Chemically cleaned surface condition for removal of surface oxides and processing residues |
The final surface condition should be confirmed together with the diameter, tolerance, material condition and applicable standard before quotation.
Ti-6Al-7Nb Wire Applications
Ti-6Al-7Nb wire is used where small diameter, controlled material properties, strength, corrosion resistance, and dimensional accuracy are required.
Medical & Orthopedic Applications
Suitable for selected surgical implant, orthopedic, and precision medical components where small-diameter titanium alloy material is required.
ASTM F1295 covers wrought Ti-6Al-7Nb alloy products used in the manufacture of surgical implants.
Precision & Research Applications
Suitable for precision components, prototypes, research projects, and material development where controlled wire dimensions and consistent alloy properties are required.
Industrial Applications
Suitable for selected industrial components requiring a lightweight titanium alloy with high strength and corrosion resistance in wire form.
For medical applications, final material selection should be based on the applicable product specification, device design, manufacturing process, validation, and regulatory requirements.

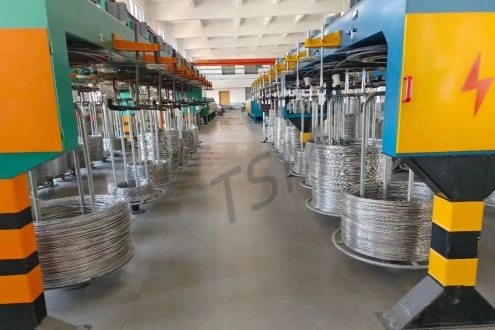

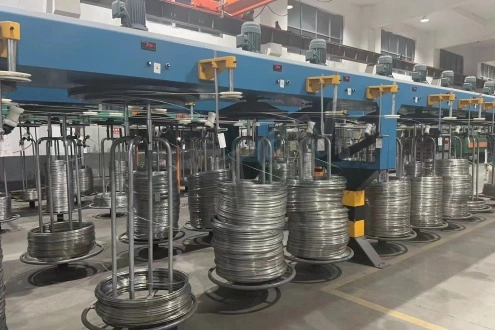

Manufacturing Process for Ti-6Al-7Nb Wire
Ti-6Al-7Nb wire is manufactured through controlled hot working and cold working to achieve the required diameter, dimensional tolerance, surface condition, and mechanical properties.
Hot Working
Hot working is used for the initial reduction and forming of Ti-6Al-7Nb material. Processing parameters are controlled according to the material condition and target wire size.
Cold Working
Cold working or cold drawing is used for further diameter reduction and dimensional control. Multiple working passes may be applied for smaller wire sizes, with intermediate heat treatment when required to maintain ductility and processing stability.
Heat Treatment
Annealing may be applied between or after working stages according to the required material condition and mechanical properties. The specific temperature and holding time are controlled according to the production specification.
Surface Finishing
The finished wire is available with bright or pickled surfaces. Final sizing, straightening, coiling, spooling, or cut-to-length processing can be provided according to customer requirements.

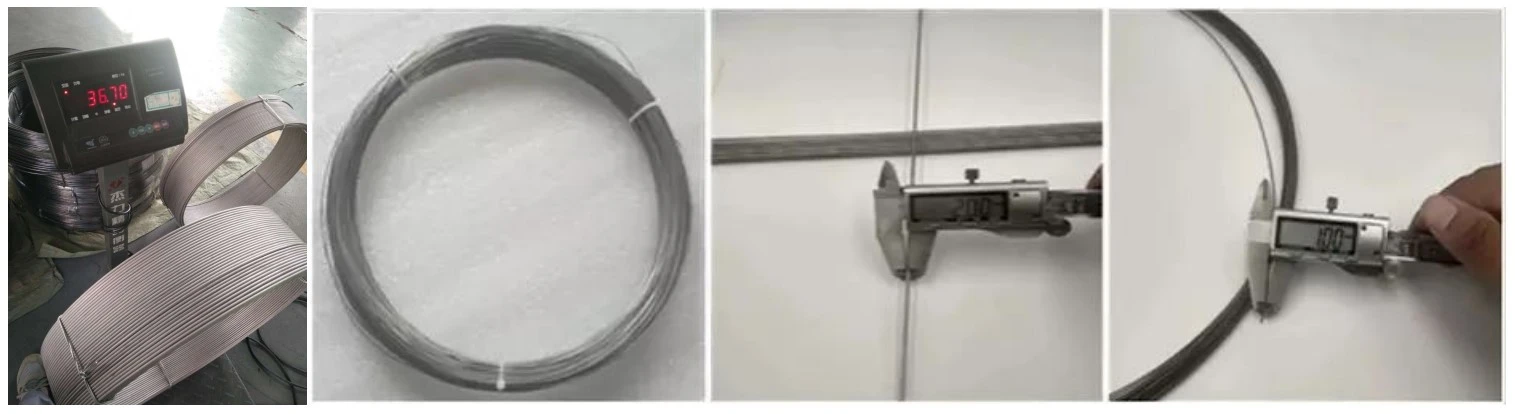

Quality Control
TSM Technology supports material traceability from raw material to finished product. Depending on the order requirements, Ti-6Al-7Nb wire can be supplied with:
- MTC acc. EN 10204 3.1
- Chemical composition and mechanical test records
- Dimensional and surface inspection
- Heat / lot traceability
- Third-party inspection where required
Additional inspection or documentation requirements should be specified before quotation.
Ti-6Al-7Nb Wire vs. Ti-6Al-7Nb Bar
TSM Technology supplies both Ti-6Al-7Nb wire and bar. Although both products use the same alloy designation and ASTM F1295 standard, their dimensions, supply forms and downstream applications are different.
| Feature | Ti-6Al-7Nb Wire | Ti-6Al-7Nb Bar |
|---|---|---|
| Product Form | Wire | Round / Square / Hexagonal Bar |
| Typical Size | 0.1–6.0 mm typical request range | Φ2–300 mm general production range |
| Supply Form | Spool, Coil, Straight Wire, Cut Length | Straight Bar |
| Main Processing | Cold Working / Hot Working | Forging / Rolling / Machining |
| Typical Requirement | Small diameter and wire-form supply | Larger diameter and rigid stock |
| Standard | ASTM F1295 | ASTM F1295 |
| UNS | R56700 | R56700 |
TSM Technology's existing Ti-6Al-7Nb bar product is listed as UNS R56700 to ASTM F1295, with diameters from Φ2.0 to Φ300 mm and lengths up to 6000 mm.
Looking for larger-diameter material? See our Ti-6Al-7Nb Titanium Bar.
Why Source Ti-6Al-7Nb Wire from TSM Technology?
ASTM F1295 Supply
Material can be supplied according to ASTM F1295 and agreed customer specifications.
Flexible Wire Supply
Spool, coil, straight wire, and cut-length options are available according to project requirements.
Material Traceability
MTC acc. EN 10204 3.1 and applicable inspection documentation can be provided.
Integrated Titanium Manufacturing
TSM Technology operates a 60,000 m² manufacturing facility and supplies titanium products to customers in 70+ countries, with capabilities including forging, machining, precision cutting, UT, ET, PMI, mechanical testing, and dimensional inspection.
Custom Ti-6Al-7Nb Wire Supply
For a quotation, please provide:
- Wire diameter and tolerance
- Length or supply form
- Surface and material condition
- Quantity
- Applicable standard or customer specification
- Inspection and certification requirements
- Packaging requirements
- Drawing or technical specification, if available
Ti-6Al-7Nb Wire FAQ
Q: What Is The Minimum Order Quantity For Ti-6Al-7Nb Wire?
A: MOQ depends on the wire diameter, quantity, material condition, and customization requirements. Contact TSM with your requirements for a project-specific quotation.
Q: How Long Does Ti-6Al-7Nb Wire Production Take?
A: Lead time depends on the diameter, quantity, surface condition, material condition, and inspection requirements. Customized sizes may require additional production time.
Q: Can Ti-6Al-7Nb Wire Be Made To A Customer Specification?
A: Yes. TSM can review requirements for diameter, tolerance, surface, mechanical properties, testing, packaging, and other technical specifications.
Q: Can You Provide An MTC And Inspection Documents?
A: Yes. An MTC according to EN 10204 3.1 can be provided. Additional inspection or testing documents can be arranged according to the agreed purchase specification.
Q: Can You Supply Small-Diameter Ti-6Al-7Nb Wire?
A: Yes. Ti-6Al-7Nb wire is available in a typical request range of 0.1–6.0 mm. Final availability depends on the required size, tolerance, condition, quantity, and production route.
Request a Quote for Ti-6Al-7Nb Wire
Send your specification or drawing to info@tsm-titanium.com-our technical team typically responds within 1–2 business days with feasibility and a quotation.
