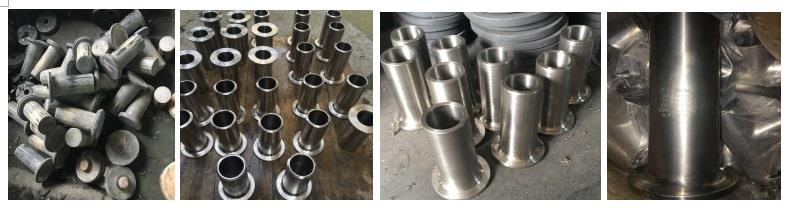

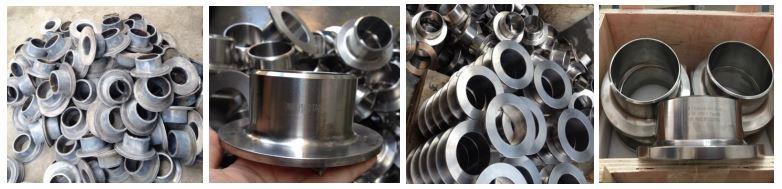

Titanium Nickel Stud End with welding ring lap joint is a highly durable and corrosion-resistant component designed for use in critical piping systems. Titanium Nickel Stud End|Welding Ring shall be matched by Titanium Flanges, they are widely used in Architecture, Power Generation Plants, Marine, Petrol/Medical, Desalination Plants, and chemical process plants. Manufactured from a blend of titanium and nickel alloys, this stud end provides exceptional performance in high-temperature, high-pressure, and corrosive environments. This welding ring lap joint stud end is compliant with ASME B16.5, ASTM B363, and available in short & long buttweld ring-type joints, ensuring compatibility with a wide range of industrial applications. The design guarantees easy installation, secure connections, and leak-proof joints, providing long-lasting service in even the most demanding conditions.TSM Technology has exported Titanium Stub ends to many countries all over the world, because of the high-brightness surface treatment and short delivery time, TSM Technology gets many good feedback from the titanium stud ends dealers abroad.
●Long Type
●Short Type
Materials and standards of Titanium Nickel Stud End
|
Material |
Titanium Gr2,Gr7,Gr12, WPT2,WPT7,WPT12,Nickel201,SS,HasteC276,Monel400 |
|
Standard |
ANSI,EN1092,JIS,BS,DIN,UNI,GOST,SABS,ASTM B16.5,ASTM B16.9 |
|
PN |
DN |
NECK DIA MAX |
NECK DIA MIN |
A short Type |
B long Type |
R |
DIA( G) |
|
ANSI B16.9 TSM Titanium Stub end Welding Ring Lap Joint ANSI B16.9 TSM Titanium Stub end Welding Ring Lap Joint |
1/2 |
22.8 |
20.5 |
76 |
51 |
3 |
35 |
|
3/4 |
28.1 |
25.9 |
76 |
51 |
3 |
43 |
|
|
1 |
35.0 |
32.6 |
102 |
51 |
3 |
51 |
|
|
1 1/4 |
43.6 |
41.4 |
102 |
51 |
5 |
64 |
|
|
1 1/2 |
49.9 |
47.5 |
102 |
51 |
6 |
73 |
|
|
2 |
62.4 |
59.5 |
152 |
64 |
8 |
92 |
|
|
2 1/2 |
75.3 |
72.2 |
152 |
64 |
8 |
105 |
|
|
3 |
91.3 |
88.1 |
152 |
64 |
10 |
127 |
|
|
3 1/2 |
104.0 |
100.8 |
152 |
76 |
10 |
140 |
|
|
4 |
116.7 |
113.5 |
152 |
76 |
11 |
157 |
|
|
5 |
144.3 |
140.5 |
203 |
76 |
11 |
186 |
|
|
6 |
171.3 |
167.5 |
203 |
89 |
13 |
216 |
|
|
8 |
222.1 |
218.3 |
203 |
102 |
13 |
270 |
|
|
10 |
277.2 |
272.3 |
254 |
127 |
13 |
324 |
|
|
12 |
328.0 |
323.1 |
254 |
152 |
13 |
381 |
|
|
14 |
359.9 |
354.8 |
305 |
152 |
13 |
413 |
|
|
16 |
412.0 |
405.6 |
305 |
152 |
13 |
470 |
|
|
18 |
462.0 |
456 |
305 |
152 |
13 |
533 |
|
|
20 |
514.0 |
507 |
305 |
152 |
13 |
584 |
|
|
22 |
565.0 |
558 |
305 |
152 |
13 |
641 |
|
|
24 |
616.0 |
609 |
305 |
152 |
13 |
692 |
Features of Titanium Nickel Stud End
Qualified Titanium products
Competitive Titanium price
Short lead time
High-performance Titanium Products
Free Titanium Samples supported
Small Titanium orders supported
Application of Titanium Nickel Stud End
Architecture Structure
Power Generation Plants
Marine/Sea Industry
Petrol/Gas Explore Industry
Medical Instruments Industry
Desalination Plants
Chemical Process Plants
Packing
Make sure the Titanium goods will be strong to avoid any damage during transportation.
Water protection at the beginning.
Standard Export Poly-wood packing with metal Frame if needed.
Delivery
We can delivery the Titanium products according to the order situation,usually 3-25 days.
If you are looking for a durable and lightweight solution for your project, look no further than our Titanium Nickel Stud End. Contact us today to learn more about our products and to request a quote! For quotations and technical support: Email: info@tsm-titanium.com
