What are Seamless Titanium Tubes?
Seamless tubes are manufactured from a solid billet of titanium without any welding seams. The process involves heating a solid cylindrical billet and piercing it through the center to create a hollow shell, which is then elongated and rolled to achieve the desired diameter, wall thickness, and length.
This method contrasts with welded tubes, which are formed from a flat sheet (strip) of titanium that is rolled into a cylindrical shape and then welded along the seam.
The Key Advantages of Choosing Seamless Tubes
Why choose a seamless titanium tube over other options? The answer lies in its inherent structural advantages:
Superior Strength and Pressure Integrity: The absence of a weld seam eliminates a potential point of failure. This makes seamless tubes inherently stronger and capable of withstanding significantly higher internal and external pressures. They are the default choice for high-pressure hydraulic systems and critical piping.
Enhanced Reliability in Critical Applications: The homogeneous structure ensures consistent mechanical properties and material composition throughout the entire length of the tube. This uniformity is crucial in industries like aerospace and medical, where reliability is paramount.
Excellent Ovality and Wall Consistency: The manufacturing process allows for exceptional control over the tube's dimensions, resulting in superior concentricity (consistent wall thickness) and ovality (roundness). This is vital for precision applications.
Superior Corrosion Resistance: While welded tubes have excellent corrosion resistance, the heat-affected zone (HAZ) near the weld can be marginally more vulnerable in extremely aggressive environments. A seamless tube has uniform metallurgical properties throughout, offering the ultimate corrosion-resistant tubing solution.

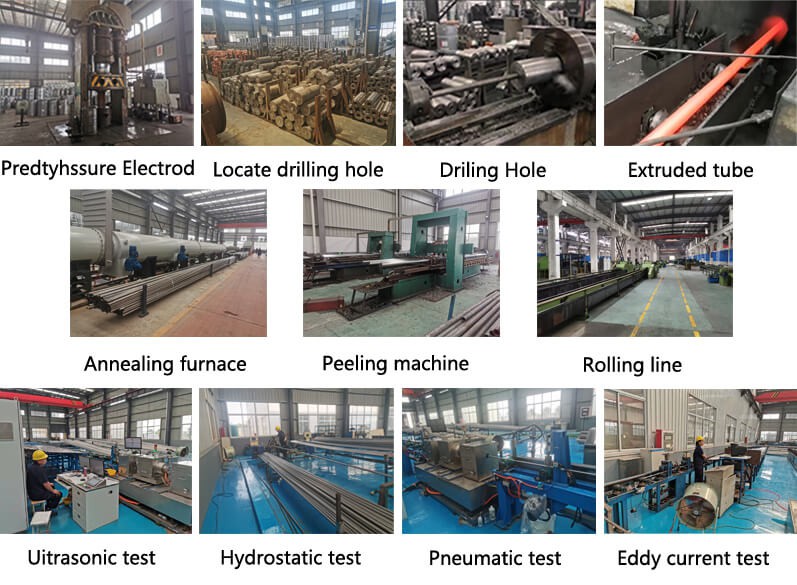

How Are Seamless Titanium Tubes Made? (The Manufacturing Process)
The journey from raw titanium to a precision seamless titanium tube is a feat of advanced engineering.
Billet Preparation: A high-quality titanium alloy billet (e.g., Grade 1, 2, 5, 7, 9) is selected and inspected.
Heating: The billet is heated to a specific, precise temperature to make it malleable.
Piercing: A piercing mill punctures the center of the solid billet to create a hollow "shell."
Elongation (Pilgering or Rolling): The hollow shell is elongated and thinned using a pilger mill or other rolling processes. This step precisely controls the outer diameter (OD) and wall thickness (WT).
Finishing: The tube is then annealed to relieve stresses, pickled to remove scale, and straightened.
Quality Assurance: Every tube undergoes rigorous testing, including hydrostatic testing, ultrasonic testing (UT), eddy current testing, and dimensional checks to ensure it meets strict ASTM B338 and other international standards.
Primary Applications of Seamless Titanium Tubes
The unique properties of seamless tubes make them indispensable across several high-tech industries:
Aerospace & Aviation: Used in hydraulic systems, fuel lines, and engine components where lightweight reliability under extreme pressure and temperature is critical (aerospace titanium tubing).
Oil & Gas: Ideal for downhole and wellhead equipment, heat exchangers in offshore platforms, and piping for handling corrosive sour gas (high-pressure seamless titanium tubing).
Chemical Processing & CPI: Used in reactors, condensers, and piping systems that handle highly corrosive chlorides, acids, and other chemicals.
Power Generation: Essential in condenser and heat exchanger tubes in nuclear and fossil fuel power plants due to titanium's resistance to corrosion and erosion.
Medical Industry: Used in manufacturing precision components for surgical devices and implants.
Marine and Naval Applications: Perfect for seawater piping, heat exchangers, and desalination plants.
Seamless vs. Welded Titanium Tubes: Which is Right for You?
| Feature | Seamless Titanium Tubes | Welded Titanium Tubes |
|---|---|---|
| Pressure Rating | Very High | High |
| Wall Consistency | Excellent | Very Good |
| Cost | Higher | More Cost-Effective |
| Size Availability | Limited to smaller diameters & thicker walls | Wider range of large diameters & thin walls |
| Lead Time | Generally longer | Generally shorter |
| Ideal For | Ultra-high pressure, critical safety applications | Lower pressure, structural, large diameter applications |
Your Trusted Partner for Seamless Titanium Tubes
Choosing a supplier for critical components like seamless titanium tubes is as important as choosing the material itself. TSM Technology Co., Ltd. is built on a foundation of quality, precision, and customer trust.
Why Source Your Seamless Titanium Tubes from TSM Technology Co., Ltd.?
Uncompromising Quality: Our tubes are manufactured to the most stringent international standards, including ASTM B338, ASME SB338, and more. We perform batch testing and provide full traceability and material certifications (MTC).
Technical Expertise: Our engineering team possesses deep expertise in titanium metallurgy. We don't just sell tubes; we provide solutions and technical support to help you select the perfect grade and specification.
Precision Manufacturing: We control every step of the process to deliver tubes with exceptional dimensional accuracy, surface finish, and mechanical properties.
Global Supply Capability: As a leading manufacturer and supplier, we efficiently serve clients across the globe in aerospace, oil & gas, and other key industries.
Ready to experience the TSM Technology difference?
Contact us today for a quote and let our experts help you find the optimal seamless titanium tubing solution for your application. Request your free technical consultation and see why industry leaders trust us with their most demanding projects.
[Button: Request a Free Quote Today]
Product Description: Seamless Titanium Tube (ASTM B338)
TSM Technology Co., Ltd. supplies premium seamless titanium tubes designed for extreme performance in corrosive and high-pressure environments. Our tubing is produced from grades including commercially pure Titanium Grade 1 and Grade 2, as well as titanium alloys like Grade 5 (Ti-6Al-4V) and Grade 9 (Ti-3Al-2.5V), complying with ASTM B338 standards.
Available Specifications:
Outer Diameter (OD): 6mm - 114mm
Wall Thickness (WT): 1mm - 10mm
Length: Up to 15 meters (custom lengths available)
Standards: ASTM B338, ASME SB338, AMS, DIN, ISO
Applications: Perfect for aerospace hydraulics, oil & gas downhole equipment, chemical processing heat exchangers, and power plant condenser tubes.
Contact us to discuss your specific requirements and receive a competitive quotation.
