In the highly competitive field of advanced metallurgy, Grade 9 titanium tubing (Ti-3Al-2.5V) aims to bridge the gap between the ultra-high strength of Grade 5 titanium tubing (Ti-6Al-4V) and the excellent formability of commercially pure titanium (CP).
Whether you're designing high-pressure hydraulic systems for commercial jet aircraft or building lightweight chassis for professional racing cars, understanding the properties of Grade 9 titanium tubing is crucial. In this guide, we'll delve into the chemical composition, physical properties, and manufacturing precision of Grade 9 titanium tubing, and why it's increasingly favored in engineering applications.
What is a grade 9 titanium tube?
Grade 9 Titanium Tube, chemically known as Ti-3Al-2.5V, is a near-alpha, alpha-beta titanium alloy. Often referred to as "half-6-4," it contains 3% Aluminum and 2.5% Vanadium. This specific formulation was developed to provide a material that is significantly stronger than Grade 2 CP Titanium while retaining the cold-workability that Grade 5 lacks.
One of the main reasons for the increasing adoption of Grade 9 titanium tubing in engineering projects is its superior strength-to-weight ratio. Its strength is approximately 20% to 50% higher than pure titanium, yet it can still be cold-drawn into precision thin-walled tubing. This makes it the preferred choice for applications with extremely high weight reduction requirements but unacceptable mechanical failures.
Chemical Composition & Mechanical Properties
The performance of any Grade 9 Titanium Tube is dictated by its atomic blueprint. The addition of Aluminum acts as an alpha stabilizer, increasing strength and oxidation resistance, while Vanadium acts as a beta stabilizer, enhancing the alloy's heat-treatability and ductility.
Below is the standard chemical (ASTM B338 Standard) breakdown for Ti-3Al-2.5V:
| Element | Min (%) | Max (%) |
| Aluminum (Al) | 2.5 | 3.5 |
| Vanadium (V) | 2.0 | 3.0 |
| Iron (Fe) | - | 0.25 |
| Oxygen (O) | - | 0.15 |
| Carbon (C) | - | 0.08 |
| Nitrogen (N) | - | 0.03 |
| Hydrogen (H) | - | 0.015 |
| Titanium (Ti) | Balance | Balance |
Mechanical Properties
The mechanical integrity of Grade 9 Titanium Tubing is often categorized by its heat-treatment state: Annealed or Cold Worked Stress Relieved (CWSR).
| Property | Annealed (Min) | CWSR (Min) |
| Tensile Strength | 620 MPa (90 ksi) | 860 MPa (125 ksi) |
| Yield Strength (0.2% Offset) | 483 MPa (70 ksi) | 725 MPa (105 ksi}) |
| Elongation in 2" (%) | 15% | 10% |
Density, Melting Point & Thermal Conductivity Specifications
For thermal management and structural calculations, the physical constants of Ti-3Al-2.5V are indispensable. Grade 9 is roughly $45\%$ lighter than steel, yet it maintains its structural integrity at temperatures where aluminum would begin to soften.
Density: 4.48 g/cm3 (0.162 lb/in 3). This low density is the cornerstone of its use in the aerospace industry.
Melting Range: 1,700 ℃ ±20℃ (3,090°F). This high melting point allows for reliability in proximity to engine components.
Thermal Conductivity: 8.3 W/(m.K). While lower than aluminum, this provides excellent thermal insulation in fluid transport systems.
Coefficient of Thermal Expansion (CTE): 9.0 X 10-6/°C (at 20-100°C). Itscompatibility with other aerospace composites makes it ideal for hybrid structures.
Specific Heat: 0.546 J/(g K).
Custom Grade 9 Titanium Tube Orders: Length, Diameter & Tolerance Specifications
One of the key advantages of sourcing from a professional manufacturer is our large inventory, enabling you to obtain Grade 9 titanium tubing in your ideal size. While standard sizes are readily available, many engineering projects require precise dimensions to optimize performance and minimize material waste. We can accommodate a wide range of custom specifications.
Standard and Custom Dimensions
Outside Diameter (OD): Range from 3.0 to 219 mm.
Length: Standard 6000 mm or cut-to-length custom precision pieces.
Shape: We only supply round and square tubes.
Diameter Tolerances (ASTM B338/ASME SB338)
Precision is the hallmark of high-quality Grade 9 Titanium Tube. Our tolerance levels strictly follow (and often exceed) international standards:
| Nominal OD (mm) | Permissible Variation (mm) |
| 6.35 to 15.88 | ±0.10 |
| 15.88 to 38.10 | ±0.13 |
| 38.10 to 50.80 | ±0.20 |
Wall Thickness Tolerance & Dimensional Standards
The wall thickness of a Grade 9 Titanium Tube determines its pressure-bearing capacity. In hydraulic systems, even a $0.01 \text{ mm}$ deviation can lead to catastrophic turbulence or failure.
Wall Thickness Variations
We offer both Average Wall and Minimum Wall specifications. For high-pressure aerospace lines, "Minimum Wall" is usually preferred to ensure safety margins are never breached.
Standard WT Range: 0.5 mm to 20 mm.
Tolerance: Typically ±10% of the nominal wall thickness, though high-precision cold-drawing can achieve ± 5%.
Seamless vs Welded: Manufacturing Process Comparison
Choosing between seamless and welded Grade 9 Titanium Tube often comes down to the application's pressure requirements and budget.
Seamless Grade 9 Tube

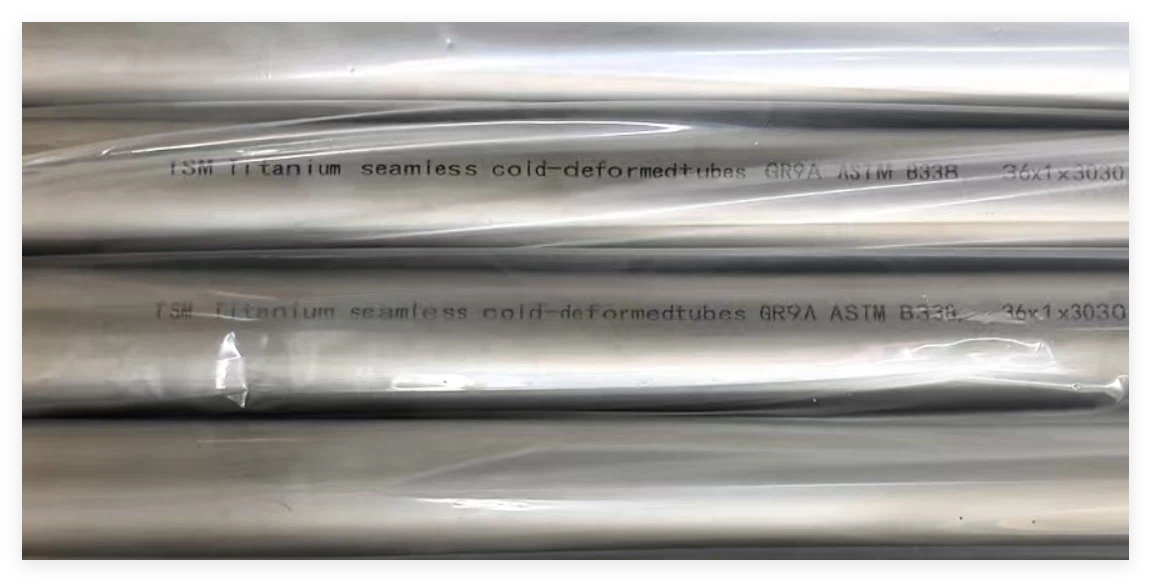

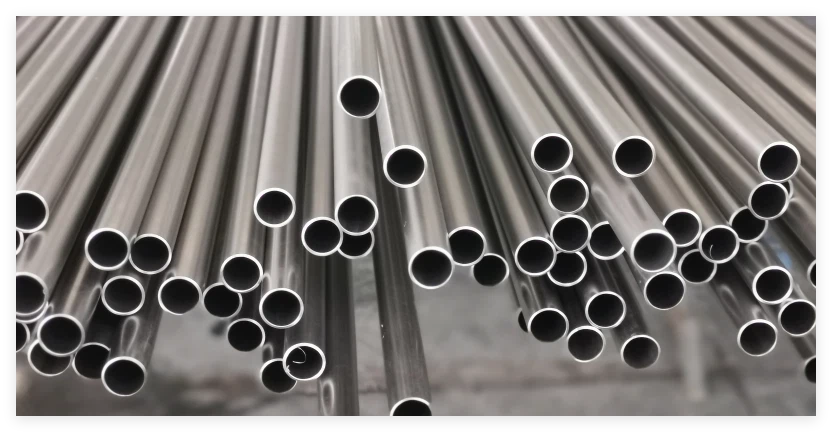

Seamless tubes are manufactured via extrusion or rotary piercing followed by pilgering (cold rolling).
Pros: No weld seam (eliminates the Heat Affected Zone), higher pressure ratings, superior uniformity.
Cons: Higher production cost and longer lead times for custom sizes.
Best For: Aerospace hydraulics, high-pressure fuel lines, and high-end bicycle frames.
Welded Grade 9 Tube

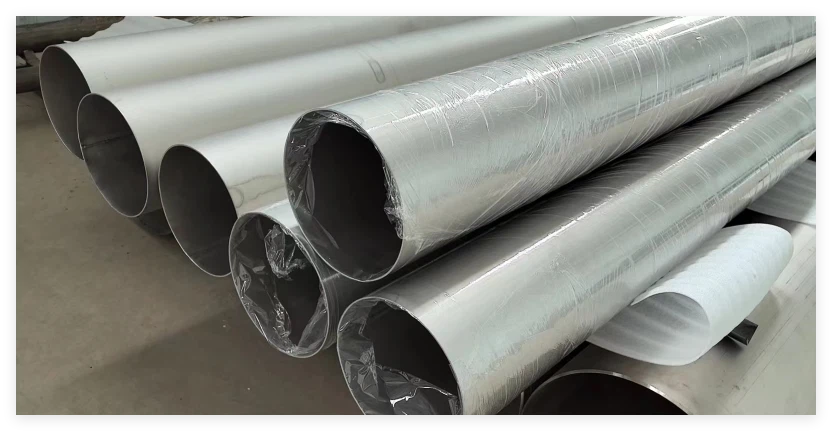

Produced from flat-rolled strip that is shaped into a tube and welded using automated TIG (Tungsten Inert Gas) or Plasma Arc welding.
Pros: More cost-effective, excellent wall thickness uniformity, available in larger diameters.
Cons: The weld zone may have slightly different grain structures unless properly vacuum annealed.
Best For: Heat exchangers, exhaust systems, and general industrial piping.
Cold Drawing Process: Quality Control & Surface Finish
The "secret sauce" of a premium Grade 9 Titanium Tube lies in the cold drawing process. Cold drawing involves pulling the tube through a hardened steel or carbide die at room temperature.
Why Cold Drawing Matters:
Dimensional Precision: It allows for much tighter tolerances than hot extrusion.
Enhanced Strength: The process work-hardens the material, boosting its yield strength.
Surface Integrity: Cold drawing produces a smooth, mirror-like finish on both the Internal Diameter (ID) and Outside Diameter (OD).
Quality Control Measures (NDT)
To ensure every Grade 9 Titanium Tubing is defect-free, we employ rigorous Non-Destructive Testing:
Ultrasonic Testing (UT): Detects internal flaws or inclusions.
Eddy Current Testing (ET): Identifies surface cracks or irregularities.
Hydrostatic Testing: The tube is pressurized with liquid to verify structural integrity.
Pneumatic Testing: Air pressure testing for micro-leaks.
Heat Treatment for Grade 9 Titanium Tube (Ti-3Al-2.5V)
Heat treatment is the final tool used to "tune" the mechanical properties of the Grade 9 Titanium Tube.
Full Annealing: Heating the tube to approximately 700-780℃ followed by air cooling. This maximizes ductility and formability, making it easier for customers to bend or flare the tubing.
Stress Relieving (SR): Often performed after cold drawing at 480-540℃. This removes internal stresses without significantly reducing the strength gains achieved through cold working.
Vacuum Heat Treatment: All critical Grade 9 treatments should occur in a vacuum or inert argon atmosphere to prevent "Alpha Case" (oxygen contamination) which makes the surface brittle.
Grade 9 Titanium Tube Stock vs Custom Manufacturing: Lead Time & MOQ Considerations
At TSM Technology, we balance the need for immediate availability with the necessity for bespoke engineering.
Stocking Program
We maintain a massive inventory of Grade 9 Titanium Tubing in standard sizes (e.g., 0.5", 0.75", 1.0" OD).
Lead Time: 3-5 business days for in-stock items.
MOQ: No minimum order quantity for stock items-perfect for prototyping.
Custom Manufacturing
For non-standard diameters or ultra-thin walls:
Lead Time: It typically takes 4 to 8 weeks, depending on the complexity of the production process.
MOQ: Generally 50 -100 kg, though we strive to accommodate smaller specialized runs for R&D projects.
application
Aerospace Applications of Grade 9 Titanium Tube: Why Ti-3Al-2.5V is Preferred for Hydraulic Systems
In the aerospace sector, Grade 9 Titanium Tube is the undisputed king of hydraulic lines. High-pressure systems in modern aircraft operate at 3,000-5,000 psi. While Grade 5 is stronger, it is too brittle to be flared or bent into the complex geometries required to navigate an airframe. Grade 9 (Ti-3Al-2.5V) offers the perfect "middle ground"-it is 50% stronger than CP Grade 2, allowing for thinner walls and significant weight savings, yet it remains ductile enough to be cold-formed. This fatigue resistance ensures the tubing can withstand the constant vibration and pressure cycles of flight for decades. View further
Grade 9 Titanium Tube in Bicycle Frames: Lightweight Strength for High-Performance Cycling
For elite cyclists, "Titanium" is a legendary word, and Grade 9 Titanium Tubing is why. It offers a ride quality that carbon fiber cannot replicate: a "snappy" responsiveness combined with natural vibration dampening. Because Ti-3Al-2.5V is highly resistant to corrosion and fatigue, a Grade 9 frame is effectively a "forever frame." It does not rust like steel or fatigue like aluminum. Manufacturers use seamless Grade 9 tubes to create frames that are incredibly stiff for power transfer while remaining light enough to dominate mountain climbs. View further
