Titanium Grade 1 Wire: Premier Manufacturer & Supplier - TSM Technology Co.LTD
As a leading global manufacturer, TSM TECHNOLOGY provides high-purity Titanium Grade 1 Wire engineered for the most demanding industrial environments. Our Grade 1 Pure Titanium Wire offers unmatched ductility and corrosion resistance, serving as the gold standard for chemical processing, marine engineering, and medical implants. We bridge the gap between high-volume production and precision custom requirements.
Premium Grade 1 Pure Titanium Wire for Industrial Excellence
Known as the softest and most ductile of the commercially pure (CP) grades, CP Titanium grade 1 wires are essential for applications requiring maximum formability. Whether you need Grade 1 Titanium Spooled Wire for automated production or straight rods for manual fabrication, TSM delivers precision-drawn solutions that meet the strictest ASTM B863 and AWS A5.16 standards.
At TSM, we solve your procurement challenges by offering a stable supply of Grade 1 Pure Titanium Wire with a monthly capacity of over 300 tons, ensuring your projects never face supply chain bottlenecks.
Specification
Chemical Composition: ERTi-1 UNS R50100 AWS A5.16 Unalloyed Titanium Welding Wire
To ensure the highest quality for our Filler Metals, TSM maintains rigorous control over interstitial elements. Our AWS A5.16 ERTi-1 compliance guarantees a pure, stable weld deposit.
| Element | Content (%) | Product Analysis Limits (max) |
| Ti | Balance | Balance |
| Fe | ≤ 0.20 | 0.20 |
| O | ≤ 0.18 | 0.18 |
| C | ≤ 0.08 | 0.08 |
| N | ≤ 0.03 | 0.03 |
| H | ≤ 0.015 | 0.015 |
Mechanical Properties of Titanium Grade 1 Wire
Understanding the strength-to-ductility ratio is crucial for selecting the right Titanium Weld Wire Grade 1. Below are the typical values for annealed wire.
| Property | Metric Value | Imperial Value |
| Tensile Strength | 240 MPa | 35,000 psi |
| Yield Strength (0.2% Offset) | 170 - 310 MPa | 25,000 - 45,000 psi |
| Elongation (min) | 24% | 24% |
| Elastic Modulus | 103 - 105 GPa | 15.2 x 10³ ksi |
| Density | 4.51 g/cm³ | lb/in³ |
AWS ERTi-1: Choice For Titanium Welding
When precision and ductility are paramount, ERTi-1 Titanium Welding Wire is the preferred filler metal. TSM specializes in producing Titanium ERTi-1 Tig Wire and Grade 1 MIG Wire that facilitate porosity-free, ductile weld deposits. Our welding wire ERTi-1 is meticulously cleaned to remove oxides and lubricants, ensuring superior weldability in oxidizing environments.
•Grade 1 TIG Rods: Available in straight lengths (914mm/1000mm).
•ERTi-1 MIG Wire: Precision level-wound on D300 or D100 spools.
•AWS A5.16 ERTi-1: Compliant with the most rigorous international standards for aerospace and industrial use.
Advantage
Marine Engineering
Immune to saltwater corrosion, ideal for underwater sensors and cabling.
Medical Devices
Biocompatible CP Titanium for surgical mesh, braces, and bone pins.

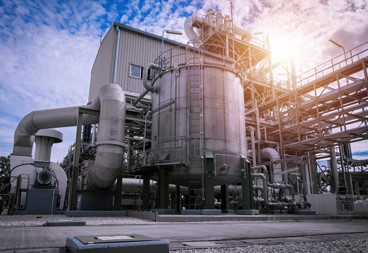

Chemical Processing
Resistant to aggressive acids and chlorine in heat exchangers.
Electrolytic Anodes
Used as substrate for coated anodes in sodium chlorate production
Grade 1 vs. Grade 2: Selecting the Right CP Titanium Wire
While both are Commercially Pure, Grade 1 Titanium Spooled Wire is softer and more ductile than Grade 2. Use Grade 1 when you need maximum formability for deep drawing or complex bending applications. Grade 2 is the 'workhorse' for general industrial strength. TSM provides both, but our Grade 1 is specially processed for high-speed automated winding without breakage.
Precision Manufacturing: The TSM Difference
Our Grade 1 Pure Titanium Wire undergoes a rigorous 6-step drawing process. We use multi-pass cold drawing followed by intermediate vacuum annealing to restore ductility and remove internal stress. The final stage involves a proprietary cleaning process that makes our welding wire ERTi-1 the cleanest in the market, eliminating common welding defects like porosity or blackening.
Contact Us
At TSM Technology, we specialize in providing Titanium Grade 1 Wire - the most corrosion-resistant and lightweight form of commercially pure titanium. This material is widely used in industries such as aerospace, medical, chemical processing, and marine due to its excellent biocompatibility, ductility, and resistance to harsh environments. Whether you require standard dimensions or customized solutions, our Titanium Grade 1 Wire is the ideal choice for demanding applications. Please contact us at info@tsm-titanium.com.
