Can titanium seamless tubes be welded, bent, or formed easily?

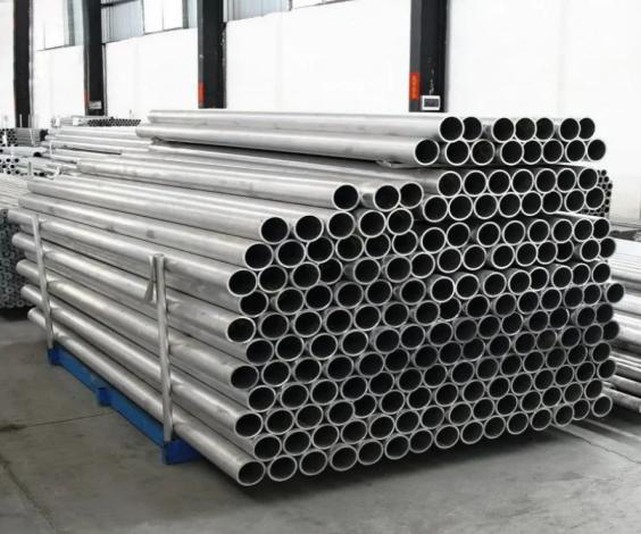

Titanium Seamless Tubes can be welded, bent, and formed effectively, but achieving high-quality results requires an understanding of titanium's unique metallurgical characteristics and adherence to proper techniques. Unlike stainless steel or carbon steel, titanium is highly reactive at elevated temperatures and requires protection from atmospheric gases during welding and forming. However, with the right equipment, expertise, and cleanliness, titanium seamless pipe can be fabricated into complex shapes and assemblies with excellent results. At TSM Technology, we not only manufacture high-quality seamless titanium alloy pipe, but we also provide expert customization services-including precision cutting, bending, and welding-to help our customers transform standard tubes into perfect fits for their specific applications.

Understanding Titanium's Fabrication Characteristics

The ease of welding, bending, and forming titanium depends significantly on the specific grade and the fabrication process used. Here's a quick overview:

Fabrication Process	Commercially Pure (Grade 1, 2)	Titanium Alloys (Grade 5, 9)	Key Requirements for Success
Welding	Excellent	Good to Excellent	Inert gas shielding (Argon), clean surface, proper filler metal
Cold Bending	Excellent	Good (Grade 9 is best)	Mandrel bending, correct bend radius, lubrication
Hot Forming	Not typically required	Sometimes required for tight radii	Controlled temperature, inert atmosphere or coating
Machining	Fair (can be gummy)	Good to Excellent	Sharp tools, rigid setup, proper speeds/feeds, coolant

The Key Principle: Titanium's reactivity with oxygen, nitrogen, and hydrogen at temperatures above approximately 600°C (1112°F) is the primary consideration. Contamination from these elements can cause embrittlement and cracking. Therefore, all hot work-especially welding-must be performed with the workpiece completely shielded by an inert gas like argon.

Welding Titanium Seamless Tubes

Welding is often required to join titanium seamless tubes into complex piping systems or assemblies. The process is well-established and reliable when procedures are followed.

Common Processes: Gas Tungsten Arc Welding (GTAW/TIG) is the most common and preferred method for welding titanium seamless pipe. It provides excellent control and allows for precise inert gas shielding. Plasma Arc Welding (PAW) and Laser Beam Welding (LBW) are also used for automated, high-production applications.

Critical Steps for Success:

Absolute Cleanliness: The weld area and filler wire must be meticulously cleaned with solvents (like acetone) to remove any oils, grease, or contaminants. Even fingerprints can cause issues.

Inert Gas Shielding: Pure argon gas must be used to shield the molten weld pool, the backside of the weld (root), and the cooling weld metal until the temperature drops below the reactive threshold. Special trailing shields and purge dams are often used.

Proper Filler Metal Selection: Using filler metal that matches the base material grade (e.g., ERTi-2 for Grade 2, ERTi-5 for Grade 5) ensures weld integrity and mechanical properties.

Outcome: Properly welded titanium seamless tubes produce joints that are as strong and corrosion-resistant as the base material, with a distinctive bright, silvery weld bead indicating successful shielding.

Bending and Forming Titanium Tubes

Forming titanium seamless tubes into curves, U-bends, or complex shapes is common for heat exchangers, exhaust systems, and fluid lines.

Bending Methods:

Rotary Draw Bending: The most common method for precision bends. Using a mandrel inside the tube prevents collapse and wrinkling. Seamless titanium alloy pipe performs excellently in this process due to its uniform wall thickness and absence of a weld seam.

Roll Bending: Used for large-radius bends in coils or structural components.

Material-Specific Considerations:

Commercially Pure Grades (Gr1, Gr2): These are highly ductile and can be bent cold with relatively tight radii. They are ideal for applications like heat exchanger U-tubes.

Grade 9 (Ti-3Al-2.5V): This alloy was specifically developed for its excellent combination of strength and cold formability. It is a preferred material for aircraft hydraulic tubing because it can be bent into tight radii without cracking.

Grade 5 (Ti-6Al-4V): This high-strength alloy has lower ductility at room temperature. For tight bends, hot forming (typically between 600-800°C) is required to prevent spring-back and cracking.

Best Practices: Use appropriate lubricants, ensure a clean surface, and design bends with radii suitable for the material grade and wall thickness.

TSM Technology's Customization Expertise

The information above highlights that while titanium can be fabricated, doing so correctly requires specialized knowledge and equipment. This is precisely where TSM Technology adds significant value for our customers. We don't just supply raw titanium seamless tubes; we offer comprehensive fabrication services to deliver components that are ready for final assembly.

As highlighted on our website, our Expert Customization Service is a core reason customers choose us. We provide tailored technical support for:

• Precision Cutting: We deliver tubes cut to your exact lengths, saving you time and material waste.
• Professional Bending: Using state-of-the-art mandrel benders, we can create complex bends, including U-bends for heat exchangers, in both pure titanium and alloys like Grade 9 and Grade 5.
• High-Integrity Welding: Our experienced welders, working with proper inert gas shielding, can fabricate welded assemblies from your seamless titanium tubes, ensuring full strength and corrosion resistance at every joint.

Our capabilities are backed by our infrastructure: 3 factories, 100+ machines, and a monthly production capacity of 300 tons. We have proven our ability to deliver high-quality, fabricated titanium components at scale, as demonstrated by our successful 5 Million RMB titanium tube project for a large industrial fluid system.

Conclusion: Fabrication-Ready Titanium from a Trusted Partner

So, can titanium seamless tubes be welded, bent, or formed easily? The answer is yes, with the right partner. While titanium demands respect for its reactive nature and requires specific procedures, these techniques are mature and highly reliable. Commercially pure grades offer excellent formability, and alloys like Grade 9 provide a superb balance of strength and bendability.

By choosing TSM Technology as your supplier, you gain more than just high-quality, certified titanium seamless pipe. You gain a partner with the in-house expertise and equipment to perform these critical fabrication steps for you. Whether you need precision-cut lengths, complex bends, or welded assemblies, we can deliver components that meet your exact specifications, saving you development time and ensuring flawless performance in your application.
