As a leading Grade 12 titanium tubing manufacturer in China, TSM Technology provides high-quality titanium tubing for corrosion-resistant applications. Our Grade 12 titanium tubing, certified to ASTM B338 / ASME SB338 and ASTM B861, exhibits superior resistance to crevice corrosion and pitting corrosion, even under high chloride and reducing acidic conditions. Grade 12 titanium tubing features a unique composition of 0.3% molybdenum and 0.8% nickel, offering superior performance compared to many other alloys in chemical, marine, and power generation applications. As a reliable supplier serving global customers, we maintain a large inventory and offer highly competitive ex-factory prices.
What is Grade 12 Titanium (Ti-0.3Mo-0.8Ni)?
Grade 12 Titanium Tubing (UNS R53400) is an alpha-beta alloy containing molybdenum and nickel, which significantly enhances corrosion resistance in both reducing and oxidizing environments. Unlike commercially pure grades, Gr12 offers superior resistance to hydrochloric, sulfuric, and formic acids, as well as excellent weldability. Our Grade 12 Titanium Tube is manufactured via cold rolling and pilgering processes, ensuring precise dimensional tolerances and consistent mechanical properties. It is the material of choice for heat exchangers, pressure vessels, and piping systems where long-term reliability is critical.
Technical Specifications
| Standard | ASTM B338 (Seamless & Welded), ASTM B861 (Seamless), ASME SB338 |
| Material Grade | Grade 12 Titanium (Ti-0.3Mo-0.8Ni) | UNS R53400 |
| OD Range | 6.0 mm – 114.3 mm (0.236″ – 4.5″); custom up to 152 mm |
| Wall Thickness | 0.5 mm – 25 mm (0.020″ – 0.984″) |
| Length | Up to 18,000 mm straight; U-bends and coils available |
| Type | Seamless (cold drawn), welded (EFW/ERW), or rolled & welded |
| Surface Finish | Pickled, polished, bright annealed, sandblasted |
| NDT | Ultrasonic, eddy current, hydrostatic, flaring/flattening test |
Chemical Composition (ASTM B338 Grade 12)
| Element | Composition (%) |
|---|---|
| Nitrogen (N) | ≤ 0.03 |
| Carbon (C) | ≤ 0.08 |
| Hydrogen (H) | ≤ 0.015 |
| Iron (Fe) | ≤ 0.30 |
| Oxygen (O) | ≤ 0.25 |
| Molybdenum (Mo) | 0.2 – 0.4 |
| Nickel (Ni) | 0.6 – 0.9 |
| Titanium (Ti) | Balance |
Mechanical Properties (Typical, Room Temperature)
| Property | Value |
|---|---|
| Tensile Strength (min) | 483 MPa (70 ksi) |
| Yield Strength (0.2% offset, min) | 345 MPa (50 ksi) |
| Elongation (in 2 inch, min) | 18% |
| Density | 4.51 g/cm³ |

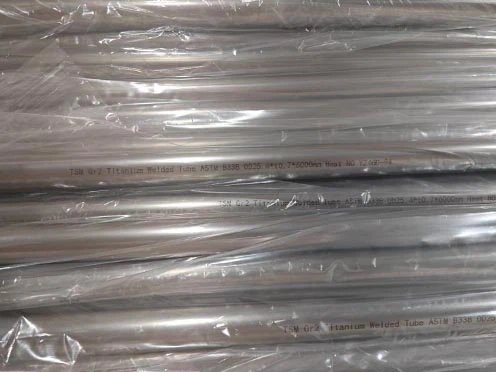

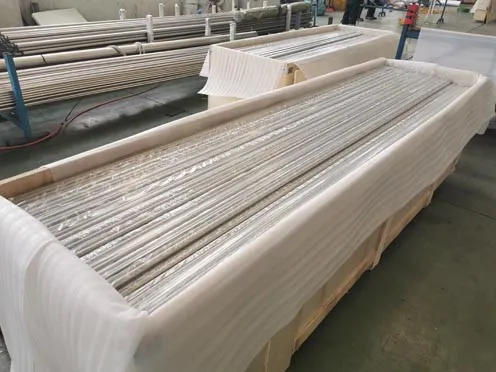

Product Gallery and Packaging
Explore our full range: Grade 2 Titanium Tube, Grade 7 (Pd-stabilized), and U-bend titanium tubes for shell-and-tube heat exchangers.
Why Choose TSM Titanium?
Own Factory
We are a factory in China with advanced production facilities. From raw material sponge to finished pipes, we control the entire process to ensure stable and reliable product quality.
Large Inventory
Over 120 tons of finished titanium pipes and billets are available in stock: outer diameters from 12.7 mm to 88.9 mm. Special sizes can also be quickly rolled from billets.
Highly Competitive Factory Prices
Factory direct sales, eliminating intermediaries. Bulk discounts are offered to contractors and OEMs. We provide the best prices while ensuring compliance with ASTM B338 standards.
Quality Assurance & Certifications
EN 10204 3.1 MTCISO 9001:2015100% Ultrasonic & Eddy CurrentPMI & Mechanical TestHydrostatic TestingThird-party inspection (SGS, BV)All Gr 12 Titanium pipe shipments include mill test certificates with full heat traceability. We adhere to strict NACE MR0175 requirements for sour service applications. Our laboratory performs flaring, flattening, and tensile tests per ASTM B338 specifications. As a trusted manufacturer, we guarantee that every tube meets or exceeds industry standards.
Grade 12 Titanium vs. Other Titanium Grades – Corrosion Advantage
Grade 12's molybdenum and nickel addition provides superior resistance to reducing acids (e.g., up to 10% H₂SO₄ at elevated temperatures) compared to Grade 2. It also resists crevice corrosion in seawater better than many stainless steels. For applications requiring high strength and weldability, Grade 12 offers an ideal balance. Our engineering team can assist in material selection for your specific media and temperature range.

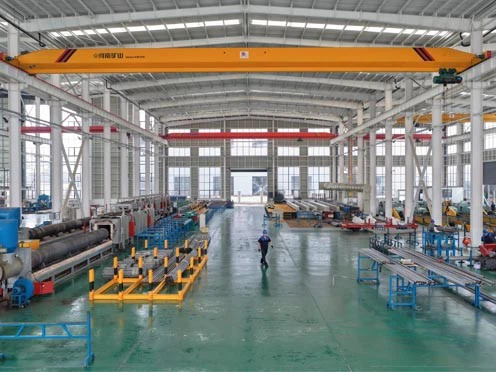

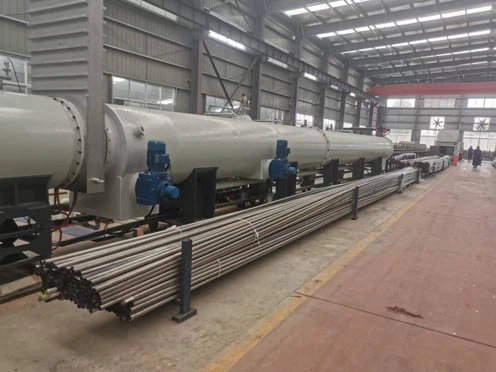

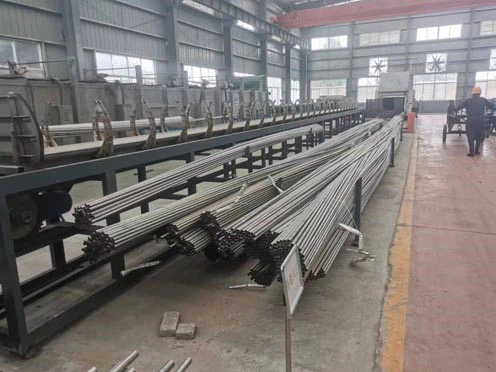

Our factory & quipment
Frequently Asked Questions – Grade 12 Titanium Tube
What standards apply to Grade 12 Titanium Tube?
+
-
Our tubes conform to ASTM B338 (general seamless/welded) and ASTM B861 (seamless only). We also meet ASME SB338 for pressure vessel applications.
Is Grade 12 titanium suitable for high-temperature service?
+
-
Yes, Grade 12 maintains good mechanical properties up to 315°C (600°F) and resists oxidation. For higher temperatures, we recommend Grade 7 or Grade 16.
Can you supply small quantities for maintenance?
+
-
Absolutely. As a stockist, we supply from a few meters to full project quantities. No minimum order restrictions for standard sizes.
What is the typical lead time for custom Grade 12 Titanium pipe?
+
-
For non-stock dimensions, lead time is 15-25 days. Expedited service available for urgent requirements.
Do you provide welding support for Grade 12 tubing?
+
-
Yes, we offer technical data sheets for GTAW welding parameters. Our metallurgists can recommend filler metal (ERTi-12) for optimal joint performance.
