TSM Technology manufactures Titanium Seamless and Welded Pipes with strict dimensional control, excellent corrosion resistance, and high strength-to-weight ratio. Suitable for aerospace pipelines, marine systems, chemical processing, heat exchangers, and medical equipment.

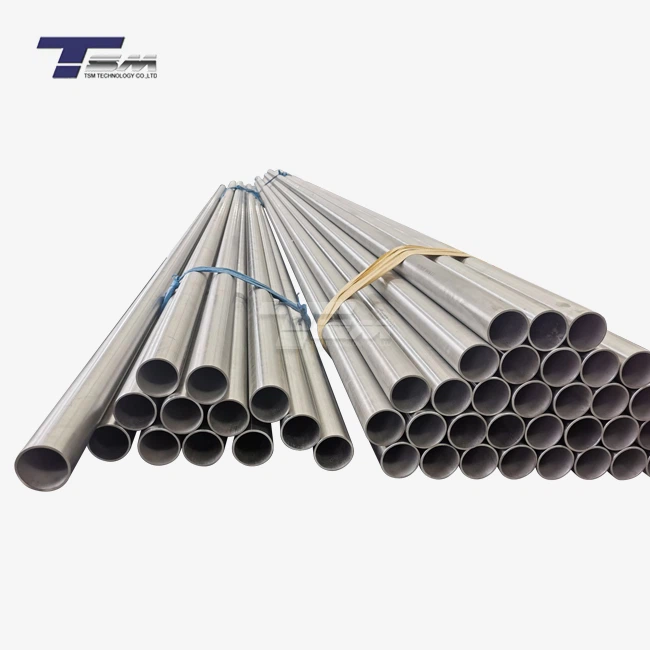

Seamless and Welded Titanium Tube
Titanium is a highly sought-after material used in various industries, including aerospace, medical, and automotive. It is known for its excellent strength-to-weight ratio, corrosion resistance, and biocompatibility. Titanium tubing, in particular, is used in various applications, such as heat exchangers, hydraulic systems, exhaust systems, and medical implants. There are two types of titanium tubing: seamless and welded. In this article, we will provide an overview of both types, including their properties, available grades, supply types, and applications.
|
Name |
Seamless & Welded Titanium Tubes |
|
Standard |
ASTM B338,ASTM B861 |
|
Material(Grade) |
Grade 1, Grade 2,Grade 5, Grade 7,Grade 9, Grade 12, |
|
Size |
Dia 6.0mm ~114.3mm,length is 18000mm (Max). |
|
Type |
Round, square, coiling |
|
Surface |
Sand blasting, polishing and pickling is also do as customers requried. |
|
Test |
Water pressure test,Ultrasonic test,X-ray test,Eddy current test,Flaring and Flattening test.(against different specification or specific requirement by customer) |
|
Package Method |
Wooden cas, and Customer requirements |
|
Payment way |
T/T, L/C, can be negotiated. |
|
Transportation |
Sea(FCL/LCL), air, express(TNT/DHL/FEDEX) |
|
Port |
Shanghai,Tianjin,Qingdao |
|
Certificate |
EN10204 3.1/3.2 as required. |
Contact now

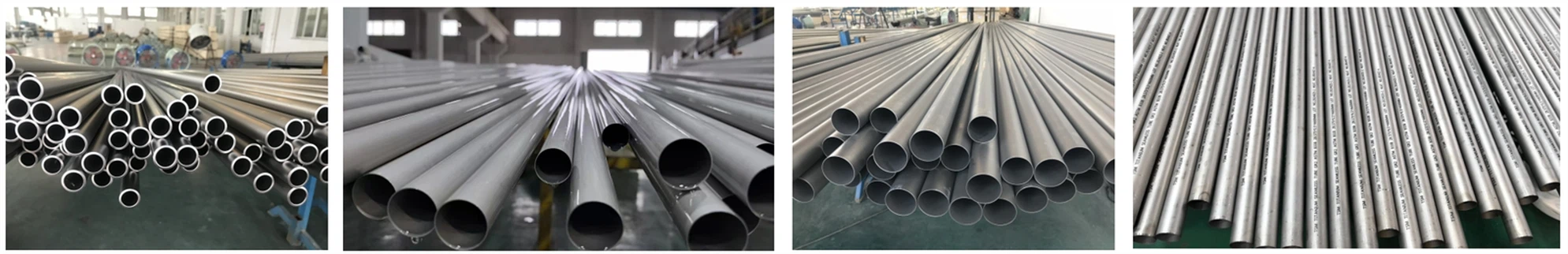

Seamless Titanium Tube
Seamless titanium tubes are produced by extrusion or drawing, where a titanium billet is heated to its plastic deformation temperature and forced through a die or a series of dies to form a tube. Seamless tubes are preferred for applications that require high strength, high corrosion resistance, and good ductility. They are also known for their uniformity and consistency in dimension and surface finish. Seamless titanium tubes are available in various grades, including Grade 1, 2, 5, 7, 9, 12, and 23. These grades differ in terms of their composition, mechanical properties, and microstructure. Grade 1 and 2 titanium tubes are the most commonly used grades, thanks to their excellent corrosion resistance and low density. Grade 5 titanium tubes, also known as Ti-6Al-4V, are used in aerospace and medical applications, where high strength, low weight, and biocompatibility are essential.

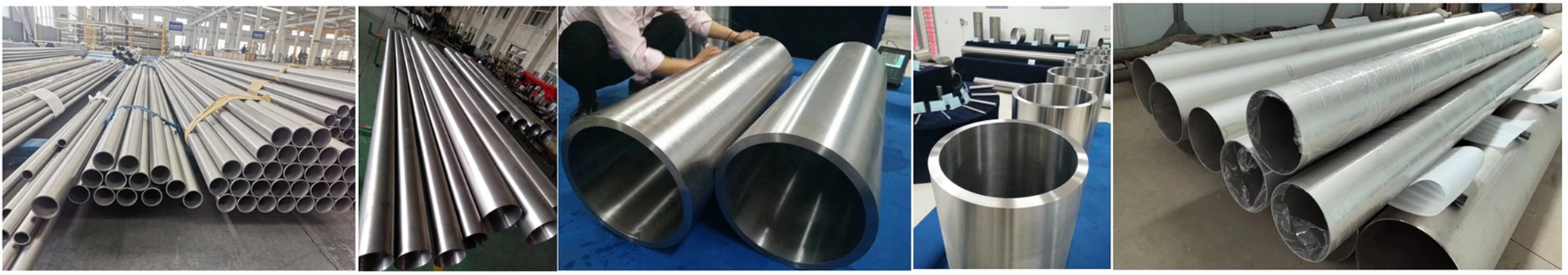

Welded Titanium Tube
Welded titanium tubes are produced by rolling a titanium plate or sheet into a tube and welding the edges together using various welding techniques, such as TIG welding, plasma welding, and electron beam welding. Welded tubes are preferred for applications that require tight tolerances, complex shapes, and high production volume. They are also more cost-effective than seamless tubes. Welded titanium tubes are available in the same grades as seamless tubes, but some grades, such as Grade 9, are more commonly used in welded form due to their lower ductility and higher strength.
Supply Types
Titanium tubes are available in various supply types, including straight lengths, coils, and U-bends. Straight lengths are the most common supply type and are used in applications that require precise lengths and dimensions. Coiled tubes are used in applications that require flexibility and compactness, such as heat exchangers and hydraulic systems. U-bends are used in applications that require a tight radius, such as condensers and evaporators.
Applications
Titanium tubes are used in various applications, including heat exchangers, condensers, boilers, hydraulic systems, exhaust systems, medical implants, and aerospace components. Titanium tubing is preferred over other materials, such as stainless steel and copper, in these applications due to its excellent corrosion resistance and weight-saving properties.
Why Choose TSM?
TSM Technology Co., Ltd. is a leading manufacturer and supplier of titanium tubes in China. We offer seamless and welded titanium tubes in various grades and supply types. Our products are made from high-quality raw materials and are tested for their mechanical and chemical properties before shipment. We also offer customized solutions to meet our customers' specific requirements. Our team of experts is committed to providing excellent customer service and technical support to ensure our customers' satisfaction. If you're looking for a reliable supplier of titanium tubes, choose TSM!
