TSM Technology specializes in manufacturing Grade 1 Grade 2 Pure Seamless Titanium Tubes, offering exceptional corrosion resistance and superior formability for demanding industrial applications. Our commercially pure titanium tubes provide the perfect balance of mechanical properties and corrosion resistance, making them ideal for heat exchangers, condensers, and marine engineering applications where reliability and longevity are paramount.

Features of Grade 1 Grade 2 Pure Seamless Titanium Tubes

Pure Seamless Titanium Tubes are categorized into Grade 1 and Grade 2 based on their impurity content. Titanium with a purity of more than 99.6% is collectively referred to as grade 1 titanium, and pure titanium with a purity of less than 99.6% is grade 2. The interstitial impurity elements of these two industrial pure titanium gradually increase, and their mechanical strength and hardness also gradually increase, but the plasticity and toughness decrease accordingly. The industrial pure titanium Seamless Tubes commonly used in industry are Grade 2, because of their moderate corrosion resistance and comprehensive mechanical properties. Grade 1 can be used when better molding properties are required. Grade 1 Grade 2 Pure Seamless Titanium Tubes have light weight, the highest ductility, and good cold forming characteristics. It is also widely used in heat exchangers, condensers, water treatment, desalination, evaporators and pipelines, etc.

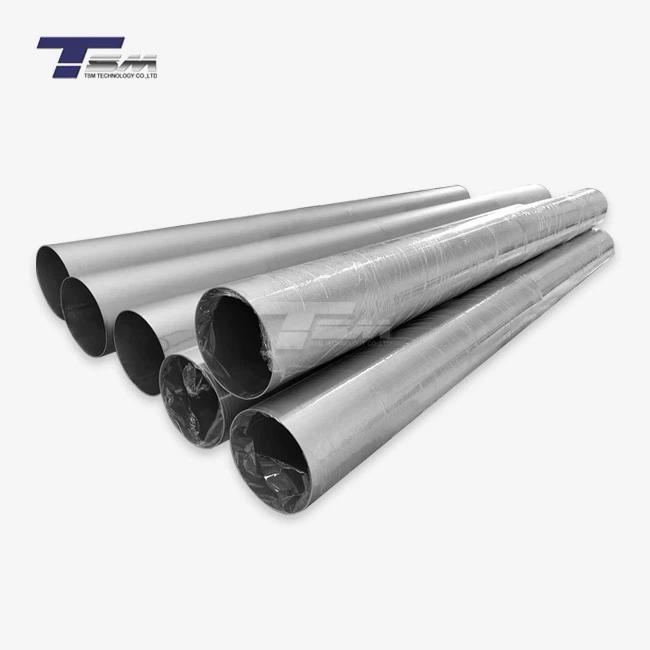

Pure Seamless Titanium Tubes

The elongation rate of the high-purity titanium tube can reach 50-60%, and the cross-sectional area can reach 70-80%. Although the strength of Grade 1 Grade 2 Pure Seamless Titanium Tubes is low, pure industrial titanium contains a small amount of impurities. The addition of alloy elements can significantly enhance its mechanical properties, making its strength comparable to high-strength materials. This means that as long as the industrial pure titanium tube contains a small amount of interstitial impurities and other metal impurities, it can have both high strength and appropriate plasticity.

Chemical Composition

Material	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Grade 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	Balance
Grade 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	Balance

Grade Comparison & Selection Guide

Parameter	Grade 1 (Highest Purity)	Grade 2 (Standard Grade)
Purity Level	> 99.6%	99.2% - 99.5%
Tensile Strength	240-310 MPa	345-480 MPa
Yield Strength	170-210 MPa	275-380 MPa
Elongation	50-60%	20-30%
Primary Advantage	Excellent formability & ductility	Balanced strength & corrosion resistance
Recommended Applications	Complex-forming applications	General industrial applications

Quality Assurance & Testing

Non-Destructive Testing

Mechanical Testing

Certification & Documentation

Ultrasonic Testing (UT)

Eddy Current Testing

Hydrostatic Pressure Testing

Visual Inspection

Flaring Test

Flattening Test

Tensile Testing

Hardness Testing

Mill Test Certificate (MTC)

SGS Test Reports

Material Traceability

EN 10204 3.1/3.2 Certification Available

Production Process

1. Material Preparation

Titanium sponge selection and inspection

Raw material chemical analysis

Quality verification against standards

2. Tube Formation

Hot extrusion process

Cold rolling and drawing

Seamless tube manufacturing

3. Heat Treatment

Annealing for stress relief

Temperature control

Microstructure optimization

4. Surface Treatment

Pickling for scale removal

Polishing to required finish

Surface quality inspection

5. Final Processing

Precision cutting to length

End finishing

Final inspection and testing

Application of Grade 1 Grade 2 Pure Seamless Titanium Tubes

Grade 1 Grade 2 Pure Seamless Titanium Tubes are light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tubular heat exchangers, coil heat exchangers, serpentine heat exchangers, condensers, evaporators, and conveying pipelines. Many nuclear power industries use Grade 1and Grade 2 titanium tubes as standard tubes for their units.
