Grade 5 Titanium Seamless Tubes (Ti-6Al-4V) are the most commonly used titanium alloy tubes, known for their exceptional strength, corrosion resistance, and heat tolerance. Ideal for high-stress and high-temperature environments.

Titanium tubes and seamless pipes are divided into commercial pure titanium and alloy titanium tubes. TSM is a leading manufacturer and supplier of titanium tubes of different grades and sizes. The specifications of the titanium pipe are ASTM B338 and ASTM B861. Grade 5 titanium seamless tubes (Ti-6Al-4V) are the most widely used titanium alloy tubes, and their output accounts for almost half of all titanium alloys. Grade5 Titanium Seamless Tubes contains 6% Al and 4% V. It belongs to (a + b) type titanium alloy and has good comprehensive mechanical properties.

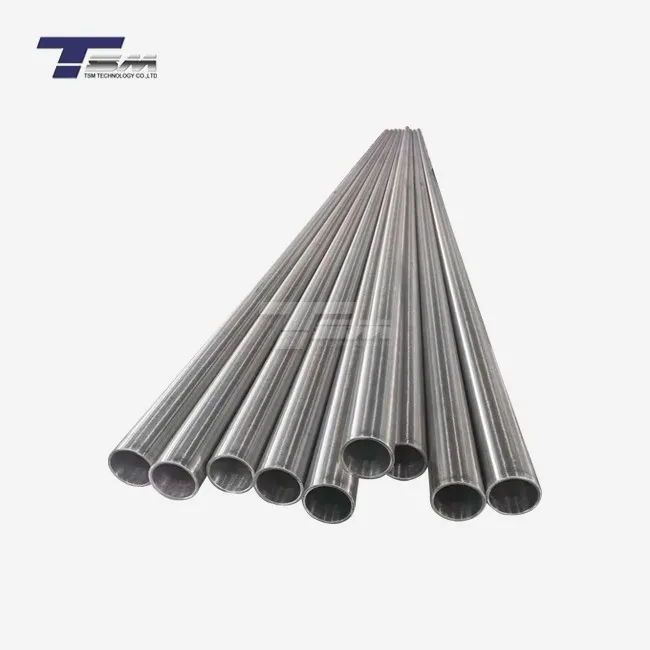

Grade 5 Titanium Seamless Tubes

Parameter	Specification
Material Grade	Grade 5 (Ti-6Al-4V) Titanium Alloy
Manufacturing Process	Seamless
Standards	ASTM B338, ASME SB338, AMS
Outside Diameter	3 mm – 219 mm
Wall Thickness	0.1 mm – 100 mm
Surface Finish	Bright, Matte, Polished
Supply Capacity	300 Tons/Month

Mechanical Properties

Property	Value
Tensile Strength	≥ 895 MPa
Yield Strength	≥ 828 MPa
Elongation	≥ 10%
Reduction of Area	≥ 20%

Key Features & Benefits

Feature	Benefit
High Strength-to-Weight Ratio	40% lighter than steel with equivalent strength, enabling weight-sensitive designs
Superior Corrosion Resistance	Excellent resistance to saltwater, chlorides, and industrial chemicals
Excellent High-Temperature Performance	Maintains mechanical properties at elevated temperatures up to 400°C
Biocompatibility	Suitable for medical implants and surgical instruments
Fatigue Resistance	Outstanding durability under cyclic loading conditions

Application And Usage Standards

1. Titanium tubes are widely used in shell and plate heat Exchangers, one is U-tube heat exchanger, another is straight tube heat exchanger.

2. Controlling by TEMA, corrosion allowances, testing requirement min. thickness, to design and manufacture efficient solutions has arrived at.

3. U-Tube Heat exchangers make use of U-shaped tubes fixed, while the straight tubes are supported through a set of straight tubes.

4. Except for it, a lot of factors should be taken into consideration, such as the thickness of the wall, eccentricity, length, and the dimensional tolerances for diameter. All of them should be considered.

5. We had finished many projects about titanium tubes of shell and plate heat exchangers worldwide. Welcome to discuss more knowledge about titanium tubes.

Customization Services

We provide comprehensive customization to meet your specific requirements:

Cutting: Precision cutting to exact lengths

Welding: Expert welding services for complex assemblies

Bending: Cold and hot bending capabilities

Sizing: Custom diameters and wall thicknesses

Finishing: Multiple surface treatment options

Why Choose TSM Technology?

Expert Manufacturing

Decades of experience in titanium processing

Quality Guarantee

Stringent quality control at every production stage

Technical Support

Expert engineering assistance for your applications

Competitive Pricing

Cost-effective solutions without compromising quality

Reliable Delivery

On-time shipment with professional logistics support

Production Workshop

TSM is a leading manufacturer and supplier of titanium pipes in China. The conventional inventory grades of titanium seamless pipes and titanium welded pipes are 1, 2, 5, 7, and 9, which can also be customized according to the specifications provided by customers. Our titanium and titanium alloy pipe products are exported to more than 40 countries in the world. The plant covers an area of more than 60,000 square meters. With an annual output of more than 1,200 tons of various alloy tubes, more than 2,000 tons of titanium ingots, and more than 2,000 tons of extruded hollow billets.
