TIG Welded Titanium Tube Manufacturer
TSM Technology supplies TIG welded titanium tubes and pipes for industrial projects requiring specified material grades, dimensions, standards, and inspection requirements. Availability is reviewed according to the requested specification and order details.
For a quotation, share your titanium grade, outside diameter, wall thickness, length, applicable standard, quantity, and testing requirements.
WELDING METHOD
TIG / GTAW Welding
Welded tube construction, subject to confirmed product route.
MATERIAL OPTIONS
Multiple Titanium Grades
Confirm grade availability against each inquiry.
QUALITY REQUIREMENTS
Specification-Based QC
Inspection scope to be agreed for each order.
TIG Welded Titanium Tubes for Industrial Applications

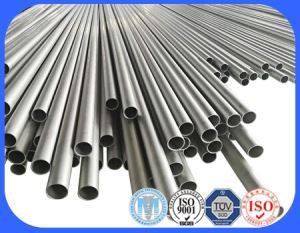

A Titanium TIG Welded Tube is formed from titanium strip or sheet and joined along the seam using Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW). Shielding gas protects the weld area from atmospheric contamination during welding.
TSM Technology supplies TIG welded titanium tubes and pipes for applications where material performance, dimensional accuracy and weld quality must meet defined project requirements. Also searched for as TIG welded titanium pipe, titanium TIG welded tube, and TIG welded titanium tubing, these products should be specified by material grade, dimensions, tolerances, applicable standard, and required inspection. TSM Technology can review project requirements and confirm suitable supply options before order placement.
Explore Titanium Tube Products →View Titanium Welded Pipes →
TIG Welded Titanium Tube Specifications
| Product Name | TIG Welded Titanium Tube / TIG Welded Titanium Pipe |
|---|---|
| Manufacturing Process | TIG (GTAW) welding; longitudinal seam |
| Material Grades | Grade 1, Grade 2, Grade 5, Grade 7 and Grade 12 |
| Applicable Standard | ASTM B862 / ASME SB862 where specified and applicable |
| Outside Diameter | 5–60.3 mm |
| Wall Thickness | 0.5–5.0 mm |
| Reference Lengths | 4,000 mm, 6,000 mm and 12,000 mm |
| Inspection Options | Visual and dimensional inspection, chemical analysis, mechanical testing and applicable NDT |
| Additional Tests | Flattening, flaring and hydrostatic testing where required by the applicable specification or order |
| Documentation | Material Test Certificate (MTC) and other agreed documents according to order requirements |
Please confirm all grades, dimensions, standards, inspection methods, certificates, and delivery details with TSM Technology before placing an order.
Titanium Grades for Welded Tubing
Grade 1
Commercially pure titanium with relatively low strength and good formability. Considered where formability and corrosion resistance are important.
Grade 2
Commercially pure titanium commonly specified for industrial corrosion-resistant applications.
Grade 5 · Ti-6Al-4V
A higher-strength titanium alloy. Welded-tube availability and applicable specification must be verified.
Grade 7
Commercially pure titanium with palladium added for improved corrosion resistance in certain environments.
Grade 12
A titanium alloy containing molybdenum and nickel, considered for selected industrial service conditions.
Applicable Standards for TIG Welded Titanium Pipe
ASTM B862 / ASME SB862
ASTM B862 covers welded titanium and titanium alloy pipe. ASME SB862 may be specified for projects using ASME material specifications. Confirm the required edition and scope in the purchase specification.
Important: ASTM B861 Is for Seamless Pipe
ASTM B861 covers titanium and titanium alloy seamless pipe. It should not be presented as the governing standard for a welded product unless the product classification and specification have been verified.
Typical Application Areas
For selected process environments, subject to material compatibility.
For systems where the specified product form and standard are suitable.
For selected seawater and demanding service environments.
For engineered equipment requiring specified titanium tubing.
Manufacturing Capability and Quality Management
TSM Technology has over 14 years of industry experience and a 60,000 m² production facility. For TIG welded titanium tube orders, the forming, welding, finishing and inspection route should be confirmed against the required grade, dimensions and standard.
14+ Years
Industry experience across titanium products.
60,000 m²
Production facility and quality-control resources.
QC & QA
Quality requirements and documentation aligned with confirmed order specifications.
Our Certificates
EN 9120:2018 Aerospace Distribution Quality Management System
AS9100D Aerospace Quality Management System
AS9100D Aerospace Quality Management System
EN 9100:2018 Aerospace Quality Management System
ISO 13485:2016 Medical Devices Quality Management System
Inspection and Testing Options
Visual Inspection
Checks the external surface and visible weld condition.
Dimensional Inspection
Verifies outside diameter, wall thickness, length and specified tolerances.
Chemical Analysis
Confirms material chemistry against the specified grade.
Mechanical Testing
Tensile testing and other required tests where specified by the applicable standard.
Flattening & Flaring
Evaluates tube deformation under the specified test procedure.
NDT / Hydrostatic Test
Method, coverage and acceptance criteria should be agreed according to the standard and order.
Weld Quality, Inspection & Documentation
For welded titanium tubing, the inspection plan should match the product standard and purchase specification. Depending on the agreed requirements, review items may include:
Visual inspection and dimensional verification.
Material identification and traceability, where required.
Weld-related non-destructive testing or mechanical tests, where applicable.
Material test certificates and agreed inspection records.
Specific tests and acceptance criteria must be agreed before order confirmation; not every test applies to every product.
Why Work with TSM Technology?
Specification-Based Quotation
Share grade, dimensions, quantity, standard and service conditions to help our team review your inquiry accurately.
Material Traceability & Documentation
Material certificates and agreed inspection records can be discussed as part of the order documentation.
Inspection Requirements Agreed Upfront
Clarify test methods, inspection coverage and acceptance criteria before order confirmation.
Broader Titanium Product Range
Explore related titanium tube products and discuss material requirements with our team.
Package and shipment
Frequently Asked Questions
What is the difference between TIG welded and seamless titanium tubes?
TIG welded tubes are formed and joined along a seam using TIG/GTAW welding. Seamless tubes are produced without a longitudinal weld seam. The suitable type depends on design, dimensions, service conditions and applicable specification.
Which standard applies to TIG welded titanium pipe?
ASTM B862 is the standard to evaluate for welded titanium and titanium alloy pipe. ASTM B861 covers seamless titanium and titanium alloy pipe. Confirm the required standard and edition in the purchase specification.
What inspection methods can be requested?
Depending on the applicable standard and order requirements, inspection may include visual and dimensional checks, chemical analysis, mechanical tests, flattening, flaring, hydrostatic testing or suitable NDT. Method, coverage and acceptance criteria should be agreed before production.
Which titanium grades can be used for welded tubes?
Grade 1, Grade 2, Grade 5, Grade 7 and Grade 12 are possible grades to discuss, but availability for a particular welded product must be confirmed against the manufacturing route and applicable standard.
Contact TSM Technology for TIG Welded Titanium Tubes
Send your titanium grade, dimensions, standard, quantity, and inspection requirements for a quotation review.
