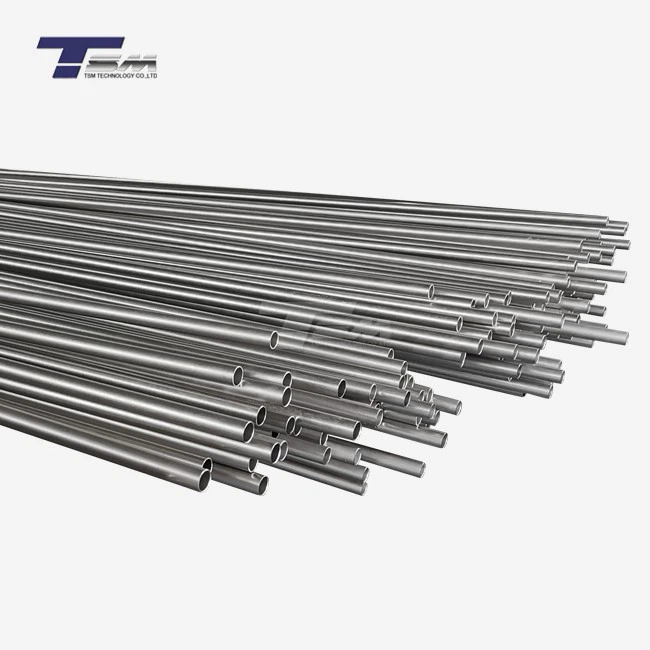

Titanium Heat Exchanger Tube - A Reliable Choice for Efficient Heat Transfer
Titanium heat exchanger tubes are a type of heat transfer equipment that is used to efficiently transfer heat between two fluids, such as a liquid and a gas. The tubes are made of high-quality titanium material, which has excellent thermal conductivity and corrosion resistance properties. The heat exchanger tubes come in two main types – the titanium coil heat exchanger and the titanium shell and tube heat exchanger.
Heat exchangers play a vital role in a wide range of industrial processes, from cooling and heating to chemical reactions. With the requirement for high efficiency, durability, and stability in heat transfer processes, many industries have started using titanium heat exchanger tubes. At TSM Technology Co., Ltd., we specialize in the manufacture and supply of titanium heat exchanger tubes and offer superior quality products at affordable prices.
Choosing the Right Grade for Titanium Heat Exchanger Tubes
Titanium heat exchanger tubes can be made to ASTM B338 standards, with Grade 1 and Grade 2 being the most common grades used in heat exchangers. Grade 1 titanium contains the highest oxygen content and is the softest grade, while Grade 2 titanium is slightly harder. The choice of titanium grade depends on the industrial application and the required specifications.
Selecting the optimal grade for titanium heat exchanger tubes depends primarily on the specific corrosive environment and mechanical requirements.
| Service Environment & Key Requirements | Recommended Titanium Grade | Rationale & Key Characteristics |
|---|---|---|
| Standard Service: Seawater, brackish water, chloride-containing media | Grade 2 (Gr2) | The industry standard. Offers the best cost-effectiveness with an optimal balance of excellent corrosion resistance, good formability, and adequate strength. |
| Aggressive Service: Reducing acids (e.g., dilute sulfuric, hydrochloric), critical crevice corrosion risk | Grade 7 (Gr7) | The addition of palladium (Pd) significantly enhances corrosion resistance, especially in reducing acids and under crevice conditions, for maximum safety. |
| Demanding Service: Need for higher mechanical strength, oxidizing environments, wider temperature ranges | Grade 12 (Gr12) | Provides improved strength over pure titanium grades and good performance in a broader range of corrosive conditions, including oxidizing media. |
Advantage
One of the major advantages of using titanium heat exchanger tubes is their long life and low maintenance requirements. In addition, they are resistant to corrosion, fouling, and scaling under high-temperature and high-pressure conditions. Because of their high-quality properties, they are efficient in the heat transfer process, making them energy-efficient.
- Exceptional Corrosion Resistance: Withstands aggressive media including seawater, chlorides, and various acids
- Superior Heat Transfer Efficiency: Optimal thermal conductivity with precise dimensional control
- Long Service Life: Maintains performance in corrosive environments where other materials fail
- Lightweight Strength: High strength-to-weight ratio reduces structural load
- Biofouling Resistance: Inhibits marine growth for maintained efficiency

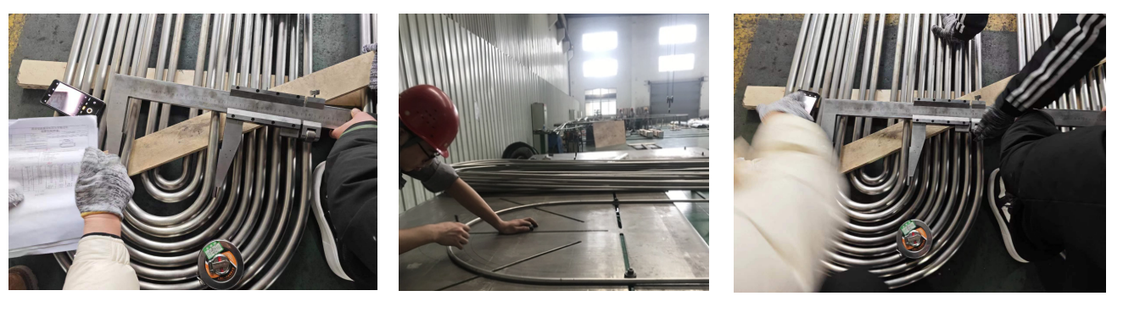

Quality Assurance
Non-Destructive Testing: Eddy Current, Ultrasonic, Hydrostatic
Dimensional Verification: Full compliance with ASTM tolerances
Material Certification: MTC 3.1/3.2 with full traceability
Surface Inspection: Visual and microscopic examination
Third-Party Verification: SGS, BV, Lloyd's available
Applications of Titanium Heat Exchanger Tubes
The applications of titanium heat exchanger tubes are diverse, ranging from chemical processing, power generation, food processing, and marine environments. They are used in various heat exchanger designs, including plate heat exchangers, shell and tube heat exchangers, and spiral heat exchangers. They are also used in processes involving hot water, steam, refrigerants, and hydraulic oils.

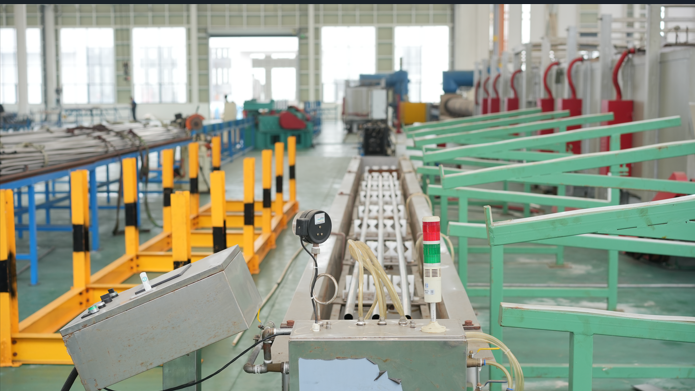

About TSM
At TSM Technology Co Ltd, we manufacture titanium heat exchanger tubes at a reasonable cost and deliver them to our customers locally and internationally. Our titanium heat exchanger tubes are manufactured using advanced techniques, including cold drawing, cold rolling, and machining to ensure high-quality results. Additionally, we are committed to providing fast delivery and excellent customer service.
fAQ: Titanium Heat Exchanger Tubes
Q1: What makes titanium superior to other materials for heat exchanger tubes?
A1: Titanium offers exceptional corrosion resistance in seawater, chlorides, and various chemicals, significantly outperforming copper alloys and stainless steels. Its excellent strength-to-weight ratio, durability, and resistance to biofouling make it ideal for demanding applications.
Q2: What are your standard sizes and tolerances?
A3: We produce tubes from 6mm to 88.9mm OD, with wall thickness from 0.5mm to 5.0mm. Standard length is up to 15,000mm. We maintain tight tolerances of ±0.1mm for OD and ±10% for wall thickness.
Q3: What testing methods do you use?
A5: We perform comprehensive testing including eddy current, ultrasonic, hydrostatic pressure tests, dimensional verification, and surface inspection to ensure every tube meets specification requirements.
Q4: Can you provide custom sizes and specifications?
A6: Yes, we specialize in custom solutions. We can produce tubes to your exact requirements for diameter, wall thickness, length, and surface finish.
Q5: What is your production capacity and delivery time?
A7: With our 3 factories and 8 production lines, we have a monthly capacity of 300 tons. Standard delivery time is 15-25 days, with expedited options available for urgent requirements.
Contact us
Titanium heat exchanger tubes are durable, energy-efficient, and cost-effective with a long lifespan and low maintenance requirements. As a leading manufacturer and supplier, TSM Technology Co., Ltd. is your trusted partner for reliable and high-quality titanium heat exchanger tubes. For technical specifications, pricing, or application consultation, contact our engineering team at info@tsm-titanium.com. We provide comprehensive support from material selection to after-sales service.
