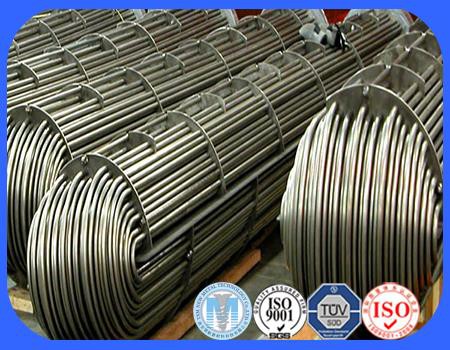

Titanium U Tube | Grade 2 U-Shaped Tube for Heat Exchangers
TSM Technology supplies Grade 2 Titanium U Tubes for shell-and-tube heat exchangers, condensers, evaporators and seawater cooling systems. Manufactured from commercially pure titanium, our U-shaped tubes combine excellent corrosion resistance, good formability and reliable dimensional control for demanding heat transfer applications.
What Is a Titanium U Tube?
A Titanium U Tube, also called a titanium U-shaped tube or titanium U-bend tube, is a titanium tube formed into a U-shaped configuration for use primarily in shell-and-tube heat exchangers and condensers.
Unlike a straight tube, a U-tube configuration allows the tube to expand and contract as operating temperatures change. This makes U-tube designs particularly useful in heat exchanger systems where thermal expansion, corrosion resistance and long-term reliability are important.
Grade 2 Titanium is one of the most widely used commercially pure titanium grades for industrial heat exchanger tubes. It provides a practical balance of corrosion resistance, formability, mechanical properties and cost.
Titanium U Tube Specifications
| Item | Specification |
|---|---|
| Product Name | Titanium U Tube / Titanium U-Shaped Tube |
| Material | Commercially Pure Titanium, Grade 1 / Grade 2 or specified alloy grade |
| Common Grade | Grade 2 Titanium |
| UNS | R50400 |
| Product Form | U-Bent Tube |
| Tube Type | Seamless / Welded, depending on specification |
| Outside Diameter | 3–219 mm, customized sizes available |
| Wall Thickness | 0.1–100 mm* |
| U-Bend | Customized according to drawing or heat exchanger specification |
| Leg Length | Customized |
| Center-to-Center Dimension | Customized |
| Surface Finish | Bright, Matte, Polished, Pickled or as specified |
| Standards | ASTM B338, ASME SB338 and applicable customer specifications |
| Testing | Dimensional Inspection, Hydrostatic, Eddy Current, UT and other required tests |
| Certification | MTC, EN 10204 3.1 / 3.2 and Third-Party Inspection when required |
| Packaging | Export Wooden Case or Customer-Specified Packaging |
*Large wall thicknesses and special dimensions should be confirmed with TSM Technology according to the required manufacturing process.
Why Use U Tubes in Heat Exchangers?
U-tube heat exchangers are widely selected for applications where temperature changes can create significant thermal expansion. The U-shaped tube configuration provides several practical engineering advantages.
Thermal Expansion Compensation
The U-shaped configuration allows the tube bundle to accommodate thermal expansion and contraction during heating and cooling cycles.
01
Corrosion Resistance
Titanium provides excellent resistance to seawater, chloride-containing environments and many industrial process media.
02
Compact Heat Exchanger Design
U-tube configurations can provide an efficient solution for shell-and- tube heat exchangers where compact and reliable tube arrangements are required.
03
Long Service Life
The corrosion resistance of titanium can help reduce tube replacement and maintenance requirements in suitable service environments.
04
Why Choose Grade 2 Titanium for U Tubes?
Grade 2 titanium is a commercially pure titanium grade commonly selected for heat exchanger and condenser applications. Its combination of corrosion resistance, formability and moderate strength makes it suitable for U-bending and demanding fluid-handling environments.
- Excellent resistance to seawater and many chloride-containing environments
- Good formability for U-bending applications
- Good weldability
- Good strength-to-weight ratio
- Low density compared with many conventional engineering alloys
- Suitable for heat exchangers and condensers
- Long service potential in properly selected applications
Grade 2 Titanium Chemical Composition
The chemical composition of Grade 2 titanium shall comply with the applicable material specification. Typical maximum limits are shown below.
|
Grade 2 |
N |
C |
H |
Fe |
O |
Al |
Mo |
Ni |
Ti |
|
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
balance |
Grade 2 Titanium Mechanical Properties
|
Tensile strength(min) |
Yeild strength(min) |
Elongation(%) | ||
|
ksi |
MPa |
ksi |
MPa |
|
|
50 |
345 |
40 |
275 |
20 |
Mechanical requirements may vary according to the applicable standard, product dimensions, heat treatment and customer specification. Final values should be confirmed against the inspection certificate supplied with the order.
Titanium U Tube Standards & Certification
Titanium U tubes for heat exchanger applications can be manufactured according to applicable international standards and customer drawings.
- ASTM B338 – Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers
- ASME SB338 – ASME specification for applicable titanium heat exchanger tubes
- AMS – Applicable aerospace material specifications where required
- EN 10204 3.1 / 3.2 – Inspection documentation according to order requirements
For special projects, the applicable standard, grade, dimensional tolerance, inspection level and documentation requirements should be confirmed before production.
Titanium U Tube Manufacturing Process
Manufacturing a titanium U tube requires controlled tube production followed by precision bending and dimensional inspection. The process is adjusted according to tube size, wall thickness, material grade and required U-bend geometry.
Raw Material Inspection
1
>>
Tube Manufacturing
2
>>
Heat Treatment
3
>>
Surface Treatment
4
>>
Precision U-Bending
5
>>
Final Inspection
6
Titanium U Tube Testing & Inspection
TSM Technology can provide inspection and testing according to the applicable standard and customer requirements.
| Inspection / Test | Purpose |
|---|---|
| Chemical Composition Analysis | Verify material grade and chemical requirements |
| Tensile Test | Verify tensile strength and mechanical properties |
| Dimensional Inspection | Verify OD, wall thickness, length and U-bend dimensions |
| Surface Inspection | Check for scratches, cracks, pits and other surface defects |
| Hydrostatic Test | Pressure testing when required by the specification |
| Eddy Current Testing | Non-destructive inspection of tube integrity |
| Ultrasonic Testing | Non-destructive testing according to applicable requirements |
| Flattening / Flaring Test | Verify tube forming and ductility requirements where applicable |
| U-Bend Inspection | Verify bend radius, ovality, wall condition and geometry |
Applications of Titanium U Tube
Heat Exchangers
Titanium U tubes are used in shell-and-tube heat exchangers where corrosion resistance and thermal expansion capability are important.
Condensers
Suitable for selected power generation, marine and industrial condenser systems.
Seawater Desalination
Grade 2 titanium is well suited to heat-transfer equipment exposed to seawater and chloride-containing environments.
Marine & Offshore
Used in seawater cooling and other marine heat-transfer systems requiring strong corrosion resistance.
Chemical Processing
Used for selected heat exchangers, evaporators and process equipment where titanium provides the required corrosion resistance.
Power Generation
Applicable to condenser and cooling systems where reliable tube performance is required.
Why Choose TSM Technology for Titanium U Tubes?
TSM Technology provides titanium tube manufacturing and customized U-bending solutions for industrial customers. Our current production system includes multiple factories, production lines and more than 100 machines, with a stated supply capacity of up to 300 tons per month.
Manufacturing Capability
Multiple production lines and equipment support titanium tube manufacturing, processing and customized U-bending requirements.
Precision U-Bending
Controlled U-bending processes are used to meet customer-specific tube geometry and dimensional requirements.
Quality Control
Material, dimensions, surface condition and non-destructive testing can be controlled according to project requirements.
Material Traceability
Material certificates and heat or batch information can be supplied to support product traceability.
Third-Party Inspection
SGS and other third-party inspection services can be arranged when required by the customer or project.
Global Supply
TSM Technology supports international customers with export packaging, logistics coordination and project-specific documentation.
Titanium U Tube Packaging & Shipping
Titanium U tubes are carefully protected during handling and transportation to reduce the risk of surface damage, deformation or contamination.
FAQ
Q: What Is A Titanium U Tube Used For?
A: Titanium U tubes are primarily used in shell-and-tube heat exchangers, condensers, evaporators and cooling systems. They are particularly suitable for applications requiring corrosion resistance and the ability to accommodate thermal expansion.
Q: What Titanium Grade Is Commonly Used For U Tubes?
A: Grade 2 commercially pure titanium is one of the most commonly used grades for industrial heat exchanger U tubes because it provides a good balance of corrosion resistance, formability and mechanical properties.
Q: What Standard Applies To Titanium Heat Exchanger U Tubes?
A: ASTM B338 and ASME SB338 are commonly specified for titanium and titanium alloy tubes used in condensers and heat exchangers. The applicable specification should be confirmed according to the project requirements.
Q: Can Titanium U Tubes Be Customized?
A: Yes. TSM Technology can evaluate customized outside diameters, wall thicknesses, bend dimensions, leg lengths, surface finishes, lengths, testing requirements and packaging according to customer drawings or technical specifications.
Q: Can You Supply Seamless Titanium U Tubes?
A: Yes. Seamless U tubes can be evaluated according to the required grade, dimensions, bend geometry and applicable specification.
Q: How Do You Inspect Titanium U Tubes After Bending?
A: Inspection can include dimensional measurement, bend radius verification, ovality inspection, wall thickness checks, surface inspection and applicable non-destructive testing.
Q: What Certificates Can Be Provided?
A: Material Test Certificates, EN 10204 3.1 or 3.2 documentation and third-party inspection reports such as SGS can be provided according to order requirements.
Q: How Can I Request A Quotation For Titanium U Tubes?
A: Send your tube OD, wall thickness, material grade, U-bend radius, center-to-center dimension, leg length, quantity, applicable standard and testing requirements. If available, please send your heat exchanger drawing or technical specification.
Request a Quote for Titanium U Tubes
Looking for Grade 2 Titanium U Tubes for a heat exchanger, condenser, desalination plant or seawater cooling system?
Send your drawing, tube dimensions, U-bend requirements, material grade, quantity and applicable standard to TSM Technology. Our team can review your requirements and provide a technical quotation.
