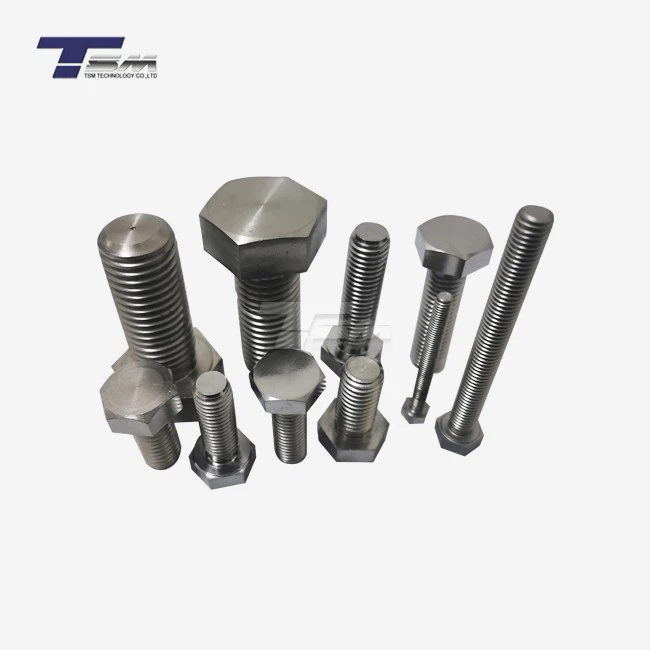

Grade 5 Titanium Fastener

Grade 5 titanium (Ti-6Al-4V) is the most widely used titanium alloy in engineering, known for its outstanding strength-to-weight ratio, excellent resistance to chloride corrosion, and superior biocompatibility.TSM Technology manufactures and supplies Grade 5 Titanium Fasteners, including Gr5 titanium bolts, screws, nuts, washers, and custom fasteners for demanding environments.

Contact now

If you are seeking a fastening solution that delivers exceptional strength, light weight, and superior corrosion resistance, Grade 5 Titanium Fasteners (Ti-6Al-4V) are the industry's preferred choice. For quotations, drawings, and technical guidance, please contact us.

We provide Gr5 titanium fasteners in all international standards:

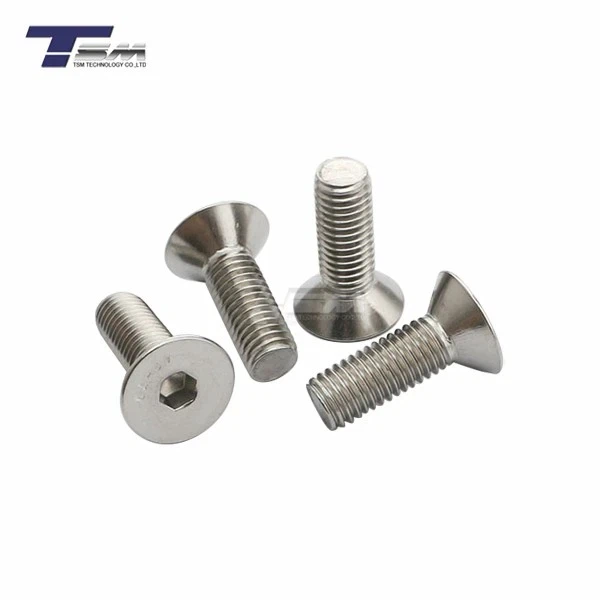

Bolts

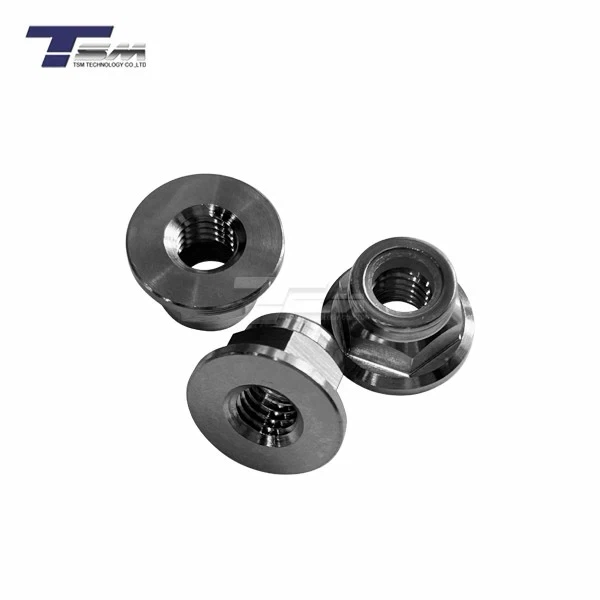

Nuts

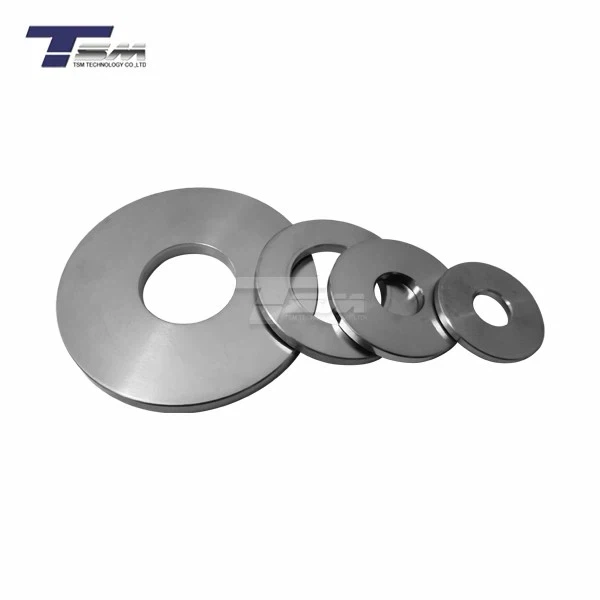

Washers

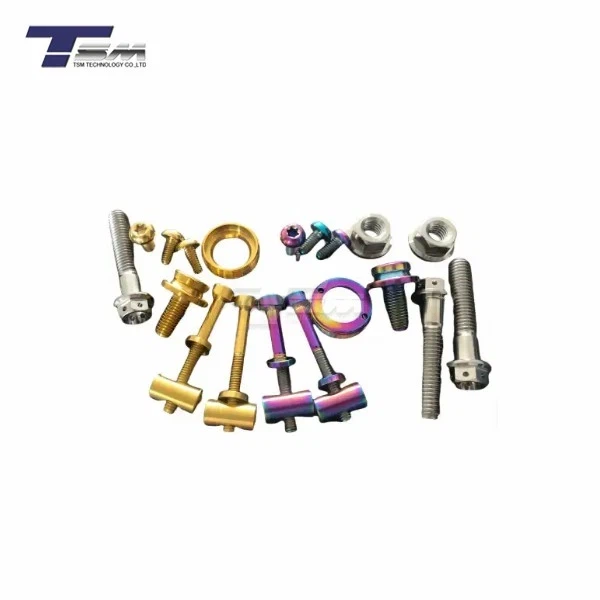

Custom Parts

Grade 5 titanium alloy fasteners possess the following outstanding characteristics:

• Excellent specific strength: Significantly reduces weight while ensuring structural strength.
• Superior corrosion resistance: Particularly suitable for saline bodies and various chloride environments.
• Excellent biocompatibility: Non-toxic, adaptable to the human body, and supports bone growth and fusion.

Grade 5 titanium is an α-β titanium alloy, containing:

6% Aluminum (α stabilizer)

4% Vanadium (β stabilizer)

It accounts for nearly 50% of global titanium usage due to its balanced performance profile.

Material Grade Standard

Wide Range of Applications



Excellent Marine Environmental Adaptability

Grade 5 titanium fasteners effectively resist seawater corrosion, primarily due to the naturally formed titanium dioxide passivation film on their surface. This protective layer automatically forms upon contact with air, continuously resisting external corrosive media.

Therefore, titanium materials have long been considered the first choice in marine corrosion protection, virtually unaffected by tidal changes, wave splashes, airborne salt spray, and underwater currents. Experiments have shown that even in high-temperature seawater or polluted waters, this material can maintain stable performance for nearly two decades. Under complex conditions such as deep-sea pressure or sediment cover, Grade 5 titanium fasteners effectively prevent pitting and crevice corrosion. Even in high-speed marine environments, their corrosion resistance remains excellent, withstanding flow velocities up to 120 feet per second.

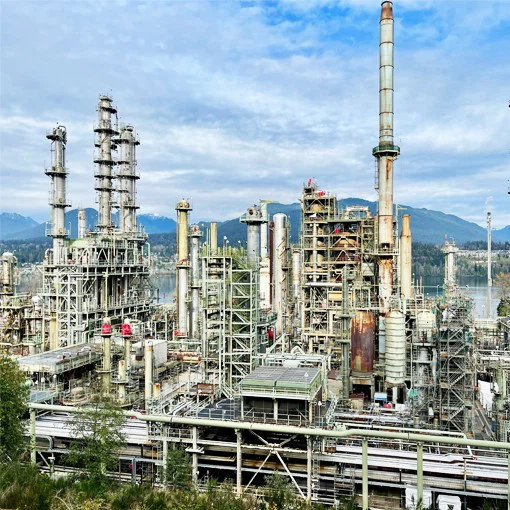

Chlorine-related industrial applications

In addition to marine environments, Grade 5 titanium alloys can also withstand pure hydrocarbons and most chlorine- and fluorine-containing compounds (under conditions free of acidic impurities). In the chemical industry, these fasteners excel in handling wet chlorine gas and chlorinated aqueous solutions, while resisting corrosion from chlorides, hypochlorites, chlorates, and other chemicals. Therefore, they are widely used in chlorine-related industrial applications such as papermaking, chlor-alkali production, and bleaching processes.

It is essential to note that while Grade 5 titanium performs exceptionally well in marine environments, its protective film is easily damaged by strong acids, such as hydrofluoric acid, hydrochloric acid, sulfuric acid, and phosphoric acid, necessitating careful selection.

Unique Value in the Medical Field

Grade 5 titanium alloy (6AL4V) fasteners hold a significant position in the medical industry, widely used in orthopedic and dental implants, prosthetic devices, spinal restorations, and surgical instruments. This is due to the material's several unique properties:

Firstly, it is non-toxic and has excellent biocompatibility, allowing it to coexist harmoniously with human tissue. It not only resists corrosion from bodily fluids but also possesses osteointegration properties, promoting a close integration with human bone and tissue. This characteristic enables stable fixation and perfect integration of the implant with the body. Simultaneously, the material itself is lightweight and high-strength, crucial for bone implant applications. Furthermore, its elastic modulus is similar to that of human bone, effectively avoiding stress shielding effects. Finally, the material is non-ferromagnetic, allowing implanted patients to safely undergo MRI scans.

To ensure the selection of the most suitable fasteners, we recommend considering the following aspects:

• Mechanical Requirements: Refer to the product's technical specifications to confirm that its load-bearing capacity meets design stress and vibration resistance requirements.
• Operating Environment: Assess corrosion factors, temperature, and humidity conditions in actual operating environments. Gr5 titanium performs excellently in salt spray and humid environments.
• Size Match: Confirm the thread specification and installation length to ensure assembly accuracy.
• Standard Compliance: Verify that the product meets relevant industry standards.

For specific product inventory information or to obtain an accurate quote, please contact us.

Q1: Why choose Grade 5 titanium for fasteners?
Because it offers unmatched strength-to-weight ratio and corrosion resistance.

Q2: Can Gr5 fasteners be used in seawater?
Yes - they remain stable for 20+ years in marine environments.

Q3: Are they suitable for medical applications?
Yes - GR5 is biocompatible, non-toxic, and MRI-safe.

Q4: Do you support customization?
Yes, customized drawings, non-standard sizes, and special coatings are available.
