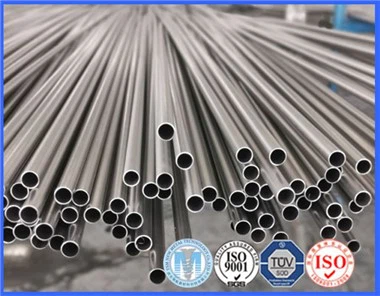

400 Monel Alloy Tube, also known as Monel 400 Tube, is a nickel-copper alloy tube supplied in UNS N04400 for applications requiring reliable corrosion resistance, mechanical strength, and stable performance in demanding environments.
TSM Technology supplies Monel 400 alloy tubes in seamless and welded configurations, with customized outside diameters, wall thicknesses, lengths, surface finishes, heat treatment conditions, and inspection requirements available according to project specifications.
What Is 400 Monel Alloy Tube?
400 Monel Alloy Tube is manufactured from Monel 400, a nickel-copper alloy containing a minimum of approximately 63% nickel and 28–34% copper. The alloy is a solid-solution material and can be strengthened through cold working.
Monel 400 is particularly valued for its resistance to seawater, marine environments, and a range of chemical processing conditions. Its combination of corrosion resistance and mechanical properties makes it suitable for tubes used in marine equipment, chemical processing systems, heat-transfer equipment, pumps, valves, and other industrial applications.
For buyers, the key advantage of Monel 400 tube is its ability to maintain reliable service performance where conventional stainless steels or lower-alloy materials may not provide sufficient corrosion resistance.
400 Monel Alloy Tube Specifications
| Material | Monel 400 / UNS N04400 |
| Product Form | Seamless Tube / Welded Tube |
|
Standard |
ASTM,JIS,AISI,GB,DIN,EN |
|
Outer Diameter |
6-2500mm, (3/8"-100") |
|
Thickness |
0.3-150mm,(SCH10-XXS) |
|
Delivery Condition |
Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn |
|
Technique |
Cold drawn, Cold rolled, Extrusion Tube |
|
Surfuace |
Polishing, pickling, sand blasting |
|
Test |
Water pressure test,Ultrasonic test,X-ray test,Eddy current test,Flaring and Flattening test. |
|
Package Method |
Wooden case, and Customer requirements |
|
Payment way |
T/T, L/C, can be negotitated |
|
Transportation |
Sea(FCL/LCL), airplane, express(TNT/DHL/FEDEX) |
|
Port |
Shanghai,Tianjin,Qingdao |
|
Certificate |
EN10204 3.1/3.2,Third Party Inspection Report, etc |
*Available dimensions depend on tube type, manufacturing process, material condition, and applicable specification. Contact TSM Technology for exact availability.
Monel 400 Tube Standards
400 Monel alloy tubes can be supplied according to applicable international standards and customer specifications.
Common specification systems include:
- ASTM
- ASME
- EN / DIN
- JIS
- GB
For project orders, the applicable product standard should be confirmed together with the tube type, dimensions, heat treatment, mechanical properties, testing requirements, and documentation.
If your purchase specification requires a specific ASTM or ASME standard, send the specification or drawing to TSM Technology for technical confirmation before quotation.
Monel 400 Tube Chemical Composition
The typical chemical composition of Monel 400 is shown below:
|
C |
Mn |
S |
Si |
Ni |
Cu |
Fe |
|
0.30 max |
2.00 max |
0.024 max |
0.50 max |
63.0 min |
28.0-34.0 |
2.50 max |
The final chemical composition shall comply with the applicable material specification and be confirmed by the material test certificate supplied with the order.
Monel 400 Tube Mechanical Properties
Typical mechanical properties for annealed Monel 400 tube include:
|
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
Monel 400 tube |
8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80,000 , MPa – 550 |
Psi – 35,000 , MPa – 240 |
40 % |
Mechanical requirements may vary according to product form, tube dimensions, heat treatment condition, and applicable specification. The final values should be confirmed against the purchasing standard.
Equivalent Grades for 400 Monel Tubes
|
GENERIC TERM |
DIN/EN |
UNS NO |
INGREDIENT |
|
MONEL400 |
2.4360 |
MONEL400 |
63Ni-32Cu-1Fe-0.1C |
400 Monel Alloy Tube Types
Monel 400 Seamless Tube
Seamless Monel 400 tubes are manufactured without a longitudinal weld seam and are suitable for applications requiring controlled dimensional accuracy and reliable pressure-containing performance.
Typical applications include:
- Heat exchangers
- Chemical processing equipment
- Marine systems
- Pumps and valves
- Process equipment
Monel 400 Welded Tube
Welded Monel 400 tubes are produced from strip or sheet material and formed and welded into tubular sections. They can provide an economical solution for larger sizes and specific industrial applications.
Welded tubes can be supplied with additional inspection and testing requirements according to project specifications.
Customized Monel 400 Tube
TSM Technology can evaluate customized requirements for:
- Outside diameter
- Wall thickness
- Length
- Surface finish
- Heat treatment
- Straightness
- Dimensional tolerance
- Testing
- Packaging
For non-standard sizes, provide a drawing or specification so the manufacturing route can be evaluated before quotation.
Monel 400 Tube Manufacturing Process
The manufacturing route depends on tube type, dimensions, and required condition.
Typical Manufacturing Flow
Raw Material → Tube Billet Preparation → Hot Working / Extrusion → Cold Drawing or Cold Rolling → Heat Treatment → Pickling / Surface Treatment → Straightening → Cutting → Dimensional Inspection → NDT → Final Inspection → Marking → Packaging
Cold drawing and cold rolling can be used to achieve tighter dimensional control and specific mechanical properties where required.
Each production order can be controlled according to the applicable material specification and customer requirements.
Monel 400 Tube Corrosion Resistance
One of the main reasons buyers select Monel 400 is its corrosion resistance.
The nickel-copper alloy provides reliable performance in a range of demanding environments, including:
- Seawater
- Marine environments
- Saltwater systems
- Chemical processing equipment
- Hydrofluoric acid service under applicable conditions
- Caustic and alkaline environments
- Heat-transfer equipment
- Offshore equipment
Actual corrosion performance depends on temperature, concentration, flow velocity, contaminants, stress conditions, and other service parameters.
For critical chemical service, TSM Technology recommends confirming the operating medium and service conditions before material selection.
Applications of 400 Monel Alloy Tube
Marine & Offshore
Monel 400 tubes are used where seawater and marine corrosion resistance are important.
Typical applications include:
Seawater systems
Marine equipment
Pumps
Valves
Propeller-related components
Offshore equipment
Chemical Processing
The alloy's corrosion resistance makes it suitable for selected chemical processing applications.
Typical uses include:
Process equipment
Heat exchangers
Chemical piping
Pumps
Valves
Chemical handling systems
Industrial Equipment
Other applications may include:
Fasteners
Marine fixtures
Pump components
Process equipment
Industrial heat-transfer systems
Material selection should always be based on the actual operating environment and applicable engineering specification.
Heat Exchangers & Power Equipment
Monel 400 tubes can be used in selected heat-transfer and steam-related equipment where the material's corrosion resistance and mechanical properties are required.
Monel 400 Tube Testing & Inspection
For industrial procurement, material quality is more than chemical composition. TSM Technology can support inspection programs covering material, dimensions, mechanical properties, surface condition, and non-destructive testing.
Inspection
| Inspection Category | Test Item |
|---|---|
| Chemical Property | Chemical Composition Analysis |
| Mechanical Property | Tensile Testing |
| Yield Strength Testing | |
| Elongation Testing | |
| Hardness Testing | |
| Dimensional & Surface | Dimensional Inspection |
| Surface Inspection | |
| Non-Destructive Testing (NDT) | Hydrostatic Testing |
| Ultrasonic Testing (UT) | |
| Eddy Current Testing (ET) | |
| X-ray Testing (where applicable) | |
| Flattening Testing | |
| Flaring Testing | |
| Advanced Verification | Positive Material Identification (PMI), when required |
Additional testing or a 100% inspection can be discussed based on customer requirements.
Material Traceability & Documentation
For industrial and project procurement, complete documentation is available according to order requirements.
Possible documentation includes:
- EN 10204 3.1 Certificate
- EN 10204 3.2 Inspection Documentation
- Mill Test Certificate / MTC
- Material Heat Number Traceability
- Chemical Composition Report
- Mechanical Test Report
- NDT Reports
- PMI Report
- Dimensional Inspection Report
- Third-Party Inspection Report
The material heat number can be linked to the supplied documentation to support traceability throughout the procurement process.
Why Buy 400 Monel Alloy Tube from TSM Technology?
Choosing a nickel alloy tube supplier is not only about the material price. For industrial buyers, consistency, documentation, inspection capability, communication, and delivery reliability are equally important.
15+ Years of Manufacturing Experience
TSM Technology has been involved in titanium manufacturing since 2011 and has developed integrated production and quality-control capabilities for demanding industrial applications.
Integrated Manufacturing Capability
The company operates a 60,000㎡ manufacturing facility with production and inspection equipment covering tube processing, machining, finishing, and quality inspection.
Professional Inspection Capability
Available inspection capabilities include ultrasonic testing, eddy current testing, PMI, mechanical testing, chemical analysis, dimensional inspection, and surface inspection.
Full Material Traceability
Material heat numbers and supporting documentation can be maintained throughout the production and delivery process.
Project-Specific Inspection
Third-party inspection and customer-specific inspection requirements can be supported for project orders.
Flexible Supply
Standard dimensions, customized sizes, special surface conditions, inspection requirements, and documentation packages can be evaluated according to individual project needs.
TSM Technology currently presents its manufacturing and quality capabilities as including a 60,000㎡ facility, 15+ years of experience, 100% material traceability, and inspection systems including UT and Eddy Current Testing.
Monel 400 Tube Packaging & Delivery
To protect the tubes during international transportation, packaging can be arranged according to product dimensions, surface finish, transportation method, and customer requirements.
FAQ
Q: What Is The UNS Number Of Monel 400?
A: Monel 400 is designated as UNS N04400. Its commonly referenced DIN material number is 2.4360.
Q: Is Monel 400 Available As Seamless Tube?
A: Yes. Monel 400 can be supplied in seamless tube configurations, subject to the required dimensions, manufacturing route, and applicable specification.
Q: What Is Monel 400 Tube Used For?
A: Typical applications include marine equipment, seawater systems, chemical processing equipment, heat exchangers, pumps, valves, and selected offshore and industrial applications.
Q: What Sizes Of Monel 400 Tube Can You Supply?
A: TSM's current product page lists an overall OD range of 6–2500 mm and wall thicknesses of 0.3–150 mm. Actual available dimensions depend on the tube type and manufacturing process, so non-standard sizes should be confirmed before ordering.
Q: What Inspection Documents Can Be Provided?
A: Depending on the order, documentation can include EN 10204 3.1/3.2 certificates, MTCs, chemical and mechanical test reports, NDT reports, dimensional inspection reports, and third-party inspection reports.
Q: Can Monel 400 Tubes Be Customized?
A: Yes. Customized OD, wall thickness, length, surface condition, heat treatment, testing, inspection, marking, and packaging requirements can be evaluated according to the project specification.
Q: How Can I Get A Quotation For Monel 400 Tube?
A: Send the material grade, tube type, OD, wall thickness, length, quantity, applicable standard, testing requirements, and destination. If you have a drawing or purchase specification, sending the original document is recommended for a more accurate quotation.
Request a Quote
Looking for 400 Monel alloy tubes for your next project?
Send us your required size, quantity, standard, tube type, inspection requirements, and delivery destination. Our team can review your requirements and provide a technical quotation based on the actual specification.
