As leading inconel 600 tube & pipe manufacturers and suppliers, TSM TECHNOLOGY CO provides world-class UNS N06600 solutions engineered for extreme heat and corrosive environments. Our Inconel 600 seamless and welded pipes are manufactured to rigorous international standards (ASTM B167, B163, B517), ensuring unparalleled reliability in aerospace, nuclear, and chemical processing industries. With over a decade of metallurgical expertise, we deliver precision-engineered tubing that withstands temperatures up to 2000°F (1093°C) while maintaining exceptional mechanical integrity.

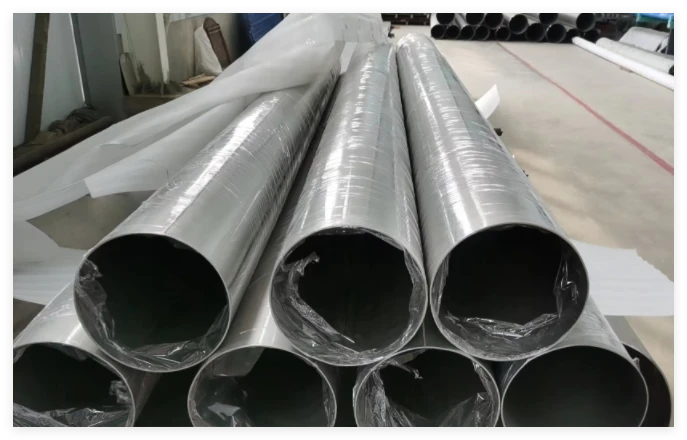

Comprehensive Overview of Inconel 600 Tube and Pipe
Inconel 600, often referred to as Alloy 600, is a versatile nickel-chromium-iron alloy known for its high-strength and excellent resistance to heat and corrosion. At TSM TECHNOLOGY CO, our inconel 600 pipe and inconel 600 tube solutions are designed for service temperatures ranging from cryogenic levels up to 2000°F (1093°C).
This superalloy is a staple in the chemical, aerospace, and nuclear industries. The high nickel content provides superior resistance to reducing environments and alkaline solutions, while the chromium content provides resistance to sulfur compounds and various oxidizing conditions. As established inconel 600 pipe suppliers, we ensure that our manufacturing processes-including cold drawing and hot finishing-are optimized for the specific mechanical requirements of your project. We pride ourselves on being a trusted inconel 600 tube supplier for EPC contractors and major OEMs worldwide.
Chemical Composition
Inconel 600 is a versatile nickel-chromium-iron alloy designed for high-temperature service and superior corrosion resistance. Below are the definitive technical profiles for our tubing and piping products.
|
Cu |
Ni |
Fe |
Mn |
C |
S |
Si |
Cr |
|
0.5 max |
72.0 min |
6.0 – 10.0 |
1.0 max |
0.15 max |
0.015 max |
0.5 max |
14.0 – 17.0 |
Mechanical Properties (Room Temperature)
| Density (g/cm³) |
Melting Point |
Tensile Strength(MPa) |
Yield Strength 0.2% Offset (MPa) |
Elongation |
|
8.47 |
1354 - 1413 °C |
550 - 690 |
240 - 345 |
40 % |
As specialized inconel 600 pipe suppliers, TSM ensures that every batch is tested to meet or exceed these values, guaranteeing safety in high-pressure and high-temperature systems.
Product Range: Inconel 600 Seamless & Welded Options
As a premier inconel 600 tube supplier, we provide guidance on the most appropriate pipe type for your operational pressure and budget.

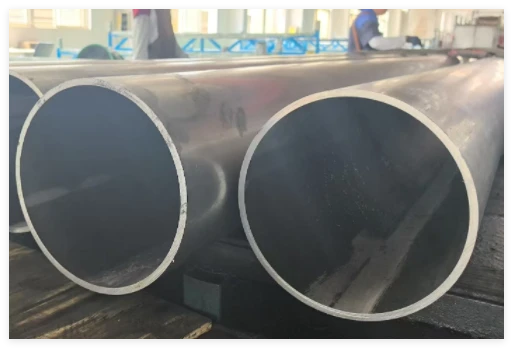

Inconel 600 Seamless Tube & Pipe
Produced by hot extruding or cold drawing a solid billet. With no weld seam, it offers 20% higher pressure ratings and superior corrosion resistance in critical areas. Ideal for high-pressure chemical lines.
Standard:ASTM B167, ASME SB167
Size Range:1/8" NB to 24" NB
Schedule:SCH 5 to SCH XXS

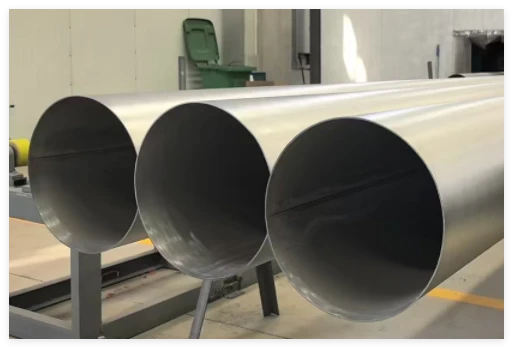

Inconel 600 Welded Tube & Pipe
Formed from flat-rolled strips and welded via ERW or EFW processes. While generally more cost-effective, they are best suited for large-diameter applications in lower-pressure environments such as exhaust systems and structural supports.
Standard:ASTM B517, ASME SB517
Size Range:6" NB to 48" NB
Schedule:0.5mm to 20mm

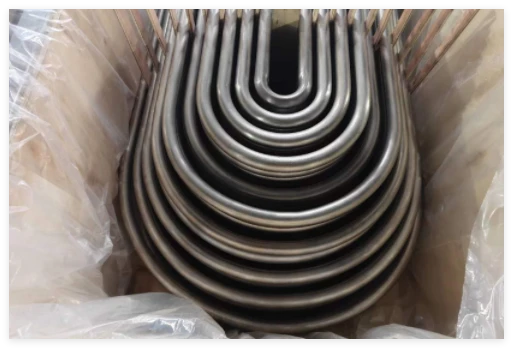

Inconel 600 Heat Exchanger Tube
Specifically engineered for high heat transfer efficiency and resistance to chloride-ion stress corrosion cracking (SCC).
Standard:ASTM B163, ASME SB163
Dimensions:Precision thin-wall sizes
Finish:Bright Annealed / Polished
Dimensions, Schedules, and Manufacturing Standards
TSM TECHNOLOGY CO adheres to rigorous international standards to ensure that every inconel 600 pipe order meets the safety requirements of global engineering projects.
International Standards Compliance:
•Seamless Tubing: ASTM B163 / ASME SB163
•Seamless Pipe: ASTM B167 / ASME SB167, AMS 5580
•Welded Pipe: ASTM B517 / ASME SB517
•Welded Tube: ASTM B516 / ASME SB516
•Pipe Fittings: ASTM B364 / ASME SB364
Size and Dimensional Scope:
•Nominal Pipe Size (NPS): 1/8" to 24" (Larger diameters available upon request for welded pipes).
•Schedules: SCH 5, SCH 10, SCH 40, SCH 80, SCH 160, SCH XXS.
•Outer Diameter (OD): 6mm to 610mm for seamless; up to 1219mm for welded.
•Wall Thickness: 0.5mm to 30.0mm.
•Surface Finish: Bright Annealed (BA), Pickled (AP), or Polished (No. 4, No. 8).
Specialized Inconel 600 Tubing Solutions
Precision Seamless Tubes
High-accuracy tubing for instrumentation and aerospace hydraulic systems.
Heavy-Wall Process Pipe
Robust piping for high-pressure chemical reactor vessels and pipelines.
Welded Structural Pipes
Large-diameter **inconel 600 welded pipes** for exhaust and containment systems.
Heat Exchanger Bundles
U-bent and straight tubes optimized for thermal exchange in power generation.
Why TSM TECHNOLOGY CO is Your Trusted Supplier
Choosing the right inconel 600 pipe suppliers is about more than just a price quote; it's about technical reliability and quality assurance.
1.Strict Quality Testing: Every shipment includes a 100% material traceability report. We perform Ultrasonic Testing (UT), Hydrostatic Testing, and Eddy Current testing on all inconel 600 seamless pipe products.
2.Custom Fabrication: We provide value-added services including precision cutting, beveled edges, threading, and specialized polishing to meet specific OEM drawings.
3.Global Delivery: Our logistics team handles complex international shipments to North America, Europe, and Asia, ensuring your project timeline is protected with on-time delivery.
4.Material Expertise: Our engineers help you decide between inconel 600 tube and other alloys like 601 or 625 based on your specific corrosive medium and pressure requirements.
FAQ
What are the key differences between Inconel 600 and Inconel 625?
Inconel 600 is primarily a nickel-chromium alloy designed for high temperature and SCC resistance. Inconel 625 contains added Molybdenum and Niobium, which provides significantly higher mechanical strength and superior resistance to localized corrosion (pitting and crevice corrosion) in seawater.
Can Inconel 600 welded pipes handle high pressure?
-
While inconel 600 welded pipes are highly durable, they are generally derated by a joint efficiency factor (usually 0.8 or 0.85) compared to inconel 600 seamless pipe in pressure vessel calculations. For critical high-pressure service, seamless is the gold standard.
What surface finishes are available for Inconel 600 tubing?
-
We offer Mill Finish, Bright Annealed (BA), Pickled (AP), and various degrees of polishing from 180 Grit to 600 Grit (Mirror Finish).
How do I prevent stress corrosion cracking in caustic environments?
-
While resistant, Inconel 600 can suffer SCC in hot, concentrated caustic alkalis. We recommend a full stress-relief heat treatment at 1650°F (900°C) for 1 hour prior to use in such environments.
Does TSM TECHNOLOGY CO provide third-party inspections?
-
We welcome third-party inspections from agencies like SGS, TUV, and BV to verify material quality and compliance with ASTM/ASME standards before shipment.
