Product Introduction: What Are Titanium Balls?

Titanium balls are precision-engineered spherical components manufactured from high-purity titanium or titanium alloys. Known for their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility, titanium balls are widely used in aerospace, chemical processing, medical devices, automotive systems, valves, bearings, and high-performance mechanical assemblies.

At TSM TECHNOLOGY CO, we supply titanium balls with tight dimensional tolerances, smooth surface finishes, and consistent material properties to meet demanding industrial standards.

Technical Specifications and Precision Standards

At TSM TECHNOLOGY CO., we ensure every titanium ball meets precise geometric tolerances. We offer various "Grades" of precision based on AFBMA (Anti-Friction Bearing Manufacturers Association) standards.

Property	Grade 2 Titanium	Grade 5 (Ti-6Al-4V)
Density	4.51g/cm3	4.43g/cm3
Melting Point	1665°C	1660°C
Tensile Strength	≥485MPa	≥895MPa
Available Sizes	1.0mm to 150mm	1.0mm to 150mm
Precision Grades	G10, G25, G100, G200	G10, G25, G100, G200

Tolerance Level and Technical Requirements

Grade	Vdws(≤)	Sph(≤)	Ra(≤)	Vdwl(≤)	Tdn(≤)
10	0.25um	0.25um	0.025um	0.5um	*
16	0.4um	0.40um	0.032um	0.8um	*
20	0.5um	0.50um	0.04um	1um	*
28	0.7um	0.70um	0.05um	1.4um	*
40	1.0um	1.00um	0.08um	2um	*
60	1.5um	1.50um	0.10um	3um	*
100	2.5um	2.50um	0.125um	5um	±12.5um
200	5um	5um	0.2um	10um	±25um
500	13um	13um	*	25um	±50um
1000	25um	25um	*	50um	±125um

Material Grades of Titanium Balls

Our titanium balls are available in multiple commercially pure and alloy grades to suit different applications:

Grade 2 Titanium Balls – Excellent corrosion resistance, good formability, widely used in chemical and marine environments

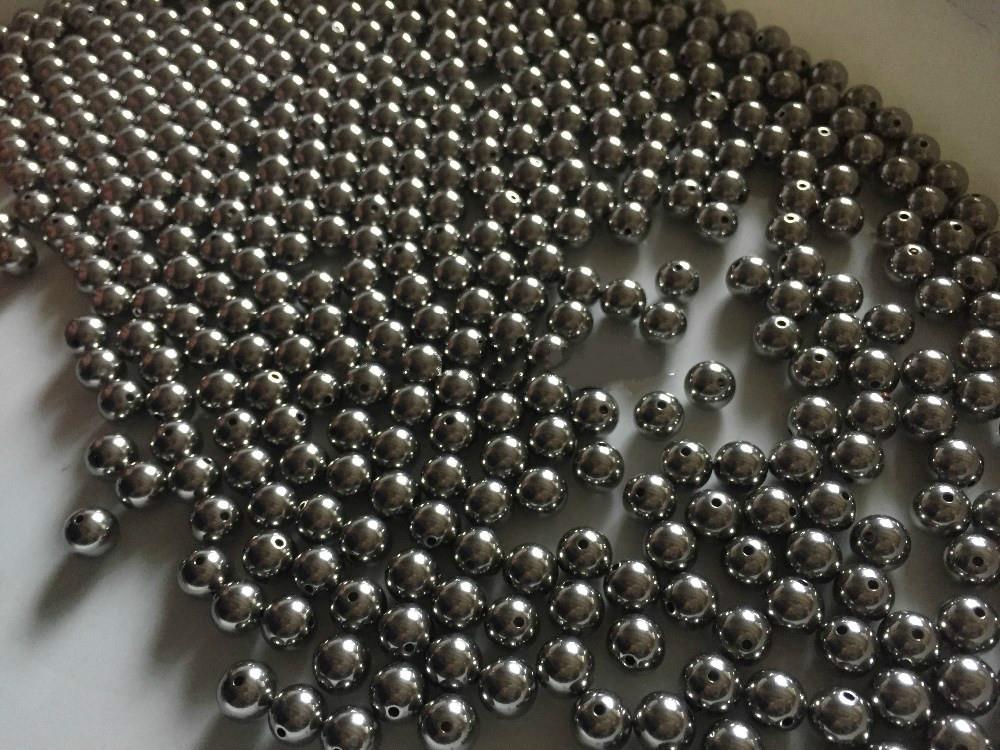

Grade 5 (Ti-6Al-4V) Titanium Balls – High strength, lightweight, ideal for aerospace and high-load applications

Grade 7 Titanium Balls – Enhanced corrosion resistance with palladium addition

Custom Titanium Alloy Balls – Available upon request for specialized performance needs.

Primary Applications Across Industries

The versatility of titanium balls makes them indispensable in several high-growth sectors:

Aerospace and Defense

Used in bearing assemblies, landing gear components, and flow control valves where weight reduction is a priority.

Chemical and Petroleum Industry

In ball valves and flow meters, titanium spheres withstand the corrosive nature of crude oil, brine, and acidic chemicals.

Medical Technology

Used in joint replacement assemblies and specialized surgical instruments due to their biocompatibility with human tissue.

High-End Jewelry

Due to their hypoallergenic properties and ability to be "anodized" into various vibrant colors, they are a staple in body piercing products.

Manufacturing Process and Quality Control

TSM TECHNOLOGY CO. employs a rigorous manufacturing cycle to ensure the highest sphericity and surface finish:

Heading/Forging: Cold or hot forging of titanium wire/rod into rough spheres.

Flashing: Removing the "equator" or flash line from the forging process.

Grinding: Bringing the balls closer to the final size and improving roundness.

Lapping/Polishing: Achieving the final precision grade and a mirror-like surface finish.

Ultrasonic Cleaning: Ensuring the spheres are free of contaminants before inspection.

Why Choose TSM TECHNOLOGY CO. as Your Supplier?

When you source your titanium balls from TSM, you are partnering with a technical leader. We offer:

Customization: We can manufacture non-standard sizes and custom alloys upon request.

Traceability: Full EN10204 3.1 material test certificates (MTC) provided with every shipment.

Global Reach: Fast, reliable shipping to North America, Europe, and Southeast Asia.

Expert Support: Our team of material scientists can help you select the optimal grade for your specific environment.

Packaging and Global Logistics

To prevent surface scratches and contamination during transit, we utilize vacuum-sealed packaging and reinforced wooden crates for large orders. Whether you need a prototype batch of 10 pieces or a production run of 100,000, we ensure the integrity of your components from our factory to your door.
