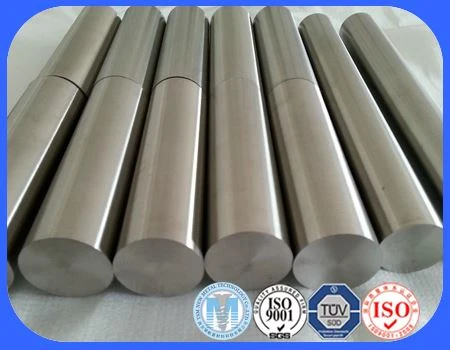

1. Tantalum Round bar
Purity Tantalum belongs to the high melting point, high boiling point metal, like the appearance of steel, gray white luster, dark gray powder, with suction, corrosion resistance, superconductivity, unipolar conductivity and under high temperature and high strength characteristics. Used for the preparation of oxid tantalum.
2. Materials show
Note: Other size of high purity astm B365 Tantalum rod bar can be discussed.
Chemical Composition of high purity astm B365 Tantalum rod bar
| grade | chemical composition %, max | |||||||||||
| Fe | Si | Ni | W | Mo | Ti | Nb | O | C | H | N | Ta | |
Ta1 Ta2 | 0.005 0.005 | 0.005 0.005 | 0.005 0.005 | 0.005 0.005 | 0.002 0.002 | 0.002 0.002 | 0.005 0.1 | 0.02 0.03 | 0.004 0.1 | 0.002 0.002 | 0.005 0.01 | remain remain |
99.95% Tantalum Bars for sale
Dimension Tolerance of high purity astm B365 Tantalum rod bar
diameter mm | dia tolerance, mm | length, mm | length tolerance, mm | ||
| forging | drawing | machining | |||
3.0-4.5 4.5-6.5 6.5-10 10-16 16-18 18-25 25-40 40-50 50-65 | - ±0.15 ±0.15 ±0.15 ±0.15 - - - - | 0.05 - - - - - - - - | - - - - - ±0.5 ±0.5 ±0.6 ±0.7 | 500-1500 500-1500 400-1500 30-1200 200-1500 - - - - | ±2 ±2 ±2 ±2 ±2 ±2 ±2 ±2 |
99.95% Tantalum Bars for sale
Mechanical Property of high purity astm B365 Tantalum rod bar
| tantalum bar ( dia 3.18mm~63.5mm ) | |||
| grade | ultimate tensile strength, min,pound / inch2 ( MPa ) | yield strength, min, pound / inch2 (MPa) | elongation, min, % 1 inch (25.4mm), gauge length |
R05400 R05200 R05252 R05255 R05240 | 25000 (172) 40000 (276) 70000 (482) 40000 (276) | 15000 (103) 28000 (193) 55000 (379) 28000 (193) | 25 20 20 25 |
Feature of
high purity astm B365 Tantalum rod bar
♦ Good ductility and toughness
♦ Low coefficient of thermal expansion
♦ Good corrosion resistance
Application of
high purity astm B365 Tantalum rod bar
♦ electrical industry,Chemical, electronic, aerospace, aviation
♦ tool bit and aiguille
♦ modern medicine
♦ metallurgy, aviation
Machining process 99.
95% Tantalum Bars for sale
3. Features
Qualified Tantalum and Niobium products
Competitive price
Short lead time
High performance Products
Free Samples supported
Small orders supported
4. Application
Boilers and pressure vessels
Petroleum
Chemical industry
Shipbuilding
Pharmaceutical
Metallurgy
Machinery
Food production ETC.
5. Packing Details
6. Shipping
7. Certificate
