Which is Better Grade 2 or Grade 5 Titanium? A Comprehensive Comparison
Oct 31, 2025
Grade 2 vs Grade 5 Titanium
Complete Comparison Guide: Properties, Applications, and Selection Criteria
Choosing between Grade 2 and Grade 5 titanium is a critical decision that impacts performance, cost, and application suitability. While both grades offer exceptional properties, understanding their differences in composition, mechanical characteristics, and performance metrics is essential for optimal material selection.
Understanding titanium grade differences enables optimal material selection
Chemical Composition Comparison
Grade 2 Commercially Pure Titanium
Primary Elements:
Titanium (Ti): 99.2% min
Iron (Fe): 0.30% max
Oxygen (O): 0.25% max
Carbon (C): 0.08% max
Nitrogen (N): 0.03% max
Hydrogen (H): 0.015% max
Grade 5 Ti-6Al-4V Alloy
Primary Elements:
Titanium (Ti): 90% balance
Aluminum (Al): 5.5-6.75%
Vanadium (V): 3.5-4.5%
Iron (Fe): 0.40% max
Oxygen (O): 0.20% max
Carbon (C): 0.08% max
Key Characteristics:
Excellent corrosion resistance
Superior formability
Optimal biocompatibility
Good weldability
Key Characteristics:
High strength-to-weight ratio
Excellent elevated temperature performance
Good fatigue resistance
Heat treatable
Mechanical Properties Analysis
| Property | Grade 2 | Grade 5 | Advantage | Impact on Applications |
|---|---|---|---|---|
| Tensile Strength (MPa) | 345 min | 880 min | Grade 5 | Higher load capacity |
| Yield Strength (MPa) | 275 min | 820 min | Grade 5 | Better elastic performance |
| Elongation (%) | 20 min | 10 min | Grade 2 | Better formability |
| Hardness (HB) | 215 max | 334 max | Grade 5 | Wear resistance |
| Elastic Modulus (GPa) | 103 | 114 | Grade 5 | Stiffer material |
| Density (g/cm³) | 4.51 | 4.43 | Grade 5 | Lightweight advantage |

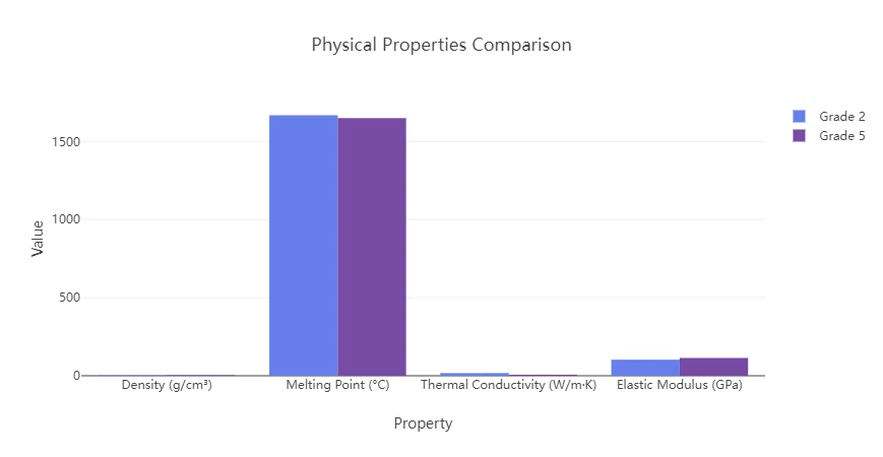

Thermal and Physical Properties
| Property | Grade 2 | Grade 5 | Unit | Application Impact |
|---|---|---|---|---|
| Melting Point | 1668 | 1650 | °C | High temperature applications |
| Thermal Conductivity | 17 | 6.7 | W/m·K | Heat transfer efficiency |
| Coefficient of Thermal Expansion | 8.6 | 8.6 | μm/m·K | Thermal stress management |
| Specific Heat Capacity | 523 | 526 | J/kg·K | Thermal energy storage |
| Electrical Resistivity | 0.56 | 1.78 | μΩ·m | Electrical applications |

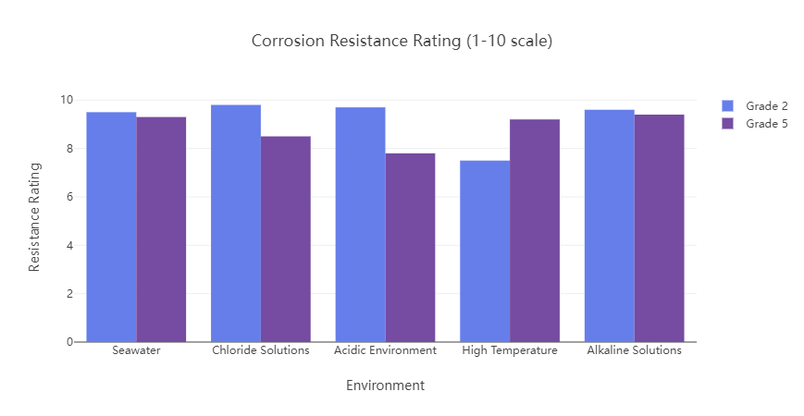

Corrosion Resistance Comparison
| Environment | Grade 2 | Grade 5 | Performance Difference | Recommendation |
|---|---|---|---|---|
| Seawater | Excellent | Excellent | Minimal | Both suitable |
| Chloride Solutions | Excellent | Good | Grade 2 superior | Grade 2 preferred |
| Acidic Environments | Excellent | Moderate | Grade 2 superior | Grade 2 preferred |
| High Temperature Oxidation | Good | Excellent | Grade 5 superior | Grade 5 preferred |
| Alkaline Solutions | Excellent | Excellent | Minimal | Both suitable |
Fabrication and Processing Differences
Grade 2 titanium Welding Characteristics
Excellent weldability with minimal precautions
Lower thermal conductivity reduces heat input requirements
Less prone to distortion and warping
Good color match in weld zone
Lower risk of contamination
Suitable for all standard welding processes
Grade 5 titanium Welding Challenges
More challenging due to aluminum and vanadium content
Higher thermal conductivity requires more heat input
Increased risk of embrittlement in HAZ
Requires careful shielding gas coverage
Potential for aluminum depletion in weld zone
Limited to specific welding processes
Formability and Machining
| Process | Grade 2 | Grade 5 | Rating Difference | Key Considerations |
|---|---|---|---|---|
| Cold Forming | Excellent | Moderate | Grade 2 superior | Springback, tool wear |
| Hot Forming | Good | Excellent | Grade 5 superior | Temperature control |
| Machining | Good | Moderate | Grade 2 easier | Tool wear, cutting forces |
| Heat Treatment | Limited | Excellent | Grade 5 superior | Process control critical |
Cost and Economic Considerations
| Cost Factor | Grade 2 | Grade 5 | Cost Impact | Analysis |
|---|---|---|---|---|
| Raw Material Cost | Baseline (1.0x) | 2.5-3.0x | 150-200% higher | Alloying elements expensive |
| Processing Cost | Standard | 20-30% higher | Moderate increase | Complex processing requirements |
| Fabrication Cost | Lower | 30-50% higher | Significant increase | Specialized tooling required |
| Tool Wear | Standard | 2-3x higher | High impact | Harder material wears tools faster |
| Heat Treatment | Minimal | Required | Additional cost | Complex thermal processing |
Total Cost of Ownership
While Grade 5 has 2.5-3x higher initial material costs, its superior strength may allow for thinner sections, potentially reducing overall component costs.
Decision-Making Framework
Primary Decision Factors
Strength Requirements: If high strength is critical → Grade 5
Corrosion Environment: If aggressive corrosion → Grade 2
Temperature Range: If >400°C → Grade 5
Fabrication Complexity: If complex forming → Grade 2
Biocompatibility: If medical applications → Grade 2
Budget Constraints: If cost is primary concern → Grade 2
Weight Optimization: If weight critical → Grade 5 (higher strength allows thinner sections)
Application-Specific Guidelines
Marine/Chemical: Grade 2 for maximum corrosion resistance
Aerospace/High Performance: Grade 5 for strength and temperature resistance
Medical: Grade 2 for biocompatibility
General Engineering: Grade 2 for cost-effectiveness
High Temperature: Grade 5 for creep resistance
Case Study: Heat Exchanger Material Selection
Success Story: Chemical Plant Heat Exchanger Optimization
Project: Material selection for shell-and-tube heat exchanger in chemical processing plant handling chloride solutions at 200°C operating temperature.
Requirements Analysis:
Operating temperature: 200°C
Pressure: 15 bar
Corrosive chloride environment
Design life: 20 years
Heat transfer coefficient: >800 W/m²·K
Budget constraints: Moderate
Material Evaluation:
Grade 2 Advantages: Superior chloride corrosion resistance, better thermal conductivity (17 vs 6.7 W/m·K), lower cost
Grade 5 Advantages: Higher strength allows thinner tubes, better high-temperature properties
Key Decision Factor: Corrosion resistance was critical in chloride environment
Final Selection: Grade 2 titanium sheet (1.2mm thickness) with enhanced surface finish
Results:
20% cost savings compared to Grade 5 alternative
Superior corrosion resistance with zero failures in 8 years
Heat transfer coefficient of 950 W/m²·K exceeded requirements
Minimal maintenance requirements
Extended service life projected beyond 20 years
Quality Standards and Certification
| Standard | Grade 2 | Grade 5 | Certification Requirements |
|---|---|---|---|
| ASTM B265 | ✓ | ✓ | Chemical composition, mechanical properties |
| ASME SB-265 | ✓ | ✓ | Pressure vessel applications |
| AMS 4902 | ✓ | - | Aerospace applications |
| AMS 4911 | - | ✓ | Aerospace Ti-6Al-4V |
| ISO 5832-2 | ✓ | - | Medical applications |
| ISO 5832-3 | - | ✓ | Medical Ti-6Al-4V |
Expert Titanium Grade Selection from TSM TECHNOLOGY
TSM TECHNOLOGY CO., LTD specializes in both Grade 2 and Grade 5 Titanium materials manufacturing. Our technical experts can help you select the optimal grade for your specific application requirements, ensuring maximum performance and cost-effectiveness.
faq
Q:1.Is Grade 5 titanium always better than Grade 2?
A:No, Grade 5 is not universally better than Grade 2. Grade 5 offers higher strength, but Grade 2 provides better formability, excellent corrosion resistance, and lower cost. The "better" choice depends entirely on your specific application requirements
Q:2.How much stronger is Grade 5 titanium compared to Grade 2?
A:Grade 5 titanium has approximately 2.6 times the tensile strength and 3 times the yield strength of Grade 2 titanium. Specifically, Grade 5 offers ~895 MPa tensile strength versus ~345 MPa for Grade 2.
Q:3.Is Grade 5 titanium worth the higher cost?
A:Grade 5 is worth the higher cost when your application requires its superior strength, fatigue resistance, or elevated temperature performance. For applications where Grade 2's properties are sufficient, it provides better value for money.
Q:4.Which titanium grade is easier to machine and form?
A:Grade 2 is generally easier to form and weld than Grade 5 due to its greater ductility. However, both grades present machining challenges and require appropriate techniques, tools, and cooling .
Q:5.Can Grade 5 titanium be heat treated?
A:Yes, Grade 5 titanium responds well to heat treatment, including aging and annealing processes, which can enhance its mechanical properties. Grade 2 titanium typically does not require heat treatment.
Q:6.Which titanium grade is used in aerospace applications?
A:Both grades are used in aerospace, with Grade 5 employed for structural components, engine parts, and landing gear where strength is critical, and Grade 2 used for ducts, casings, and non-structural components where corrosion resistance and formability are priorities.
